5-position, 1-row wire-to-wire power connector with male pin contacts. Features a straight, panel-mount orientation and a 0.1499-inch pitch. Constructed with glass, PET, and polyester body materials in black housing. Rated for 250V AC, operating from -67°C to 221°C, and meets UL94 V-0 flammability standards. This crimp termination connector is RoHS compliant and accepts 16AWG wire.
MountingPanel
Quick Jump:
Technical Specifications
TE Connectivity 1-178802-5 technical specifications.
General
| Approvals | UL |
| Body Material | Glass, PET, Polyester |
| Color | Black |
| Connector System | Wire-to-Wire |
| Contact Type | Male Pin |
| Depth | 33.6mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Halogen Free | Halogen Free |
| Height | 33.6mm |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 1.85inch |
| Max Operating Temperature | 221°C |
| Min Operating Temperature | -67°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Panel |
| Number of Contacts | 5 |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 200 |
| Packaging | Bag |
| Pitch | 0.1499inch |
| Preloaded | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Selectively Loaded | No (Without) |
| Series | Dynamic 3100 |
| Termination | Crimp |
| VDE Tested | No |
| Voltage Rating (AC) | 250V |
| Width | 0.499inch |
| Wire/Cable Gauge | 16AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1-178802-5 Datasheet
Download the complete datasheet for TE Connectivity 1-178802-5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

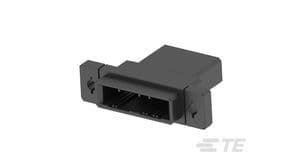

Product Images
