40-position, 2-row wire-to-wire connector housing with a 2mm pitch. Features straight, cable mount orientation and female socket contact type. Constructed with glass and polyester body material, this black receptacle offers a maximum operating temperature of 221°C and a voltage rating of 125V AC. Compliant with UL, RoHS, and ELV standards, it boasts a UL94 V-0 flammability rating.
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 1-1827863-0 technical specifications.
General
Approvals
UL
Body Material
Glass, Polyester
Color
Black
Connector System
Wire-to-Wire
Contact Type
Female Socket
Depth
11.3mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Receptacle
Halogen Free
Halogen Free
Height
0.444inch
Housing Color
Black
Length
42.6mm
Max Operating Temperature
221°C
Min Operating Temperature
-67°C
Max Voltage Rating (AC)
125V
Mount
Free Hanging
Number of Contacts
40
Number of Positions
40
Number of Rows
2
Orientation
Straight
Package Quantity
100
Packaging
Bag
Pitch
0.079inch
Preloaded
No
Primary Type
CONNECTOR
Reach SVHC Compliant
No
RoHS Compliant
Yes
Row Spacing
0.129inch
Sealable
No (Without)
Selectively Loaded
No (Without)
Series
Dynamic D1100
Termination
Crimp
VDE Tested
No
Width
12.45mm
Wire/Cable Gauge
22AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1-1827863-0 Datasheet
Download the complete datasheet for TE Connectivity 1-1827863-0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

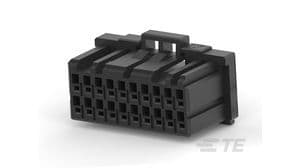

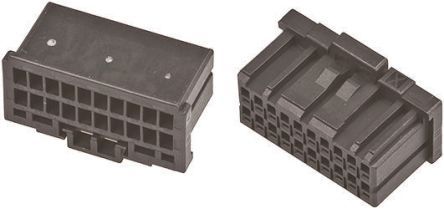

Product Images
