8-position, 2-row wire-to-wire connector housing with a 2.5mm pitch. Features a straight, male contact orientation and a free-hanging mounting style. Constructed with glass and polyester body material, this black connector is rated for 250V AC and operates between -67°C and 221°C. Termination is via crimp, suitable for 18AWG wire. UL recognized and RoHS compliant.
Voltage Rating250V
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 1-1903130-4 technical specifications.
General
| Approvals | UL |
| Body Material | Glass, Polyester |
| Color | Black |
| Connector System | Wire-to-Wire |
| Contact Type | Tab |
| Depth | 11.3mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Halogen Free | Halogen Free |
| Height | 0.826inch |
| Housing Color | Black |
| Length | 0.496inch |
| Max Operating Temperature | 221°C |
| Min Operating Temperature | -67°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Free Hanging |
| Number of Contacts | 8 |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bag |
| Pitch | 2.5mm |
| Preloaded | No |
| Primary Type | CONNECTOR |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Row Spacing | 0.129inch |
| Sealable | No (Without) |
| Selectively Loaded | No (Without) |
| Series | Dynamic D-1200 |
| Termination | Crimp |
| VDE Tested | No |
| Voltage Rating | 250V |
| Width | 11.3mm |
| Wire/Cable Gauge | 18AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1-1903130-4 Datasheet
Download the complete datasheet for TE Connectivity 1-1903130-4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

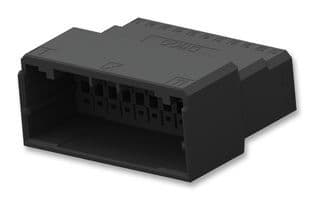

Product Images
