12-position, 1-row, 2.5mm pitch male tab header for through-hole mounting. Features a 6A contact current rating and 2A overall current rating, with copper alloy contacts plated in matte tin. This connector offers vertical orientation, mating retention, and a maximum operating temperature of 248°C. Constructed from UL94 V-0 rated Nylon in a natural housing color, it is RoHS compliant.
Current Rating2A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 1-1971818-2 technical specifications.
General
| Backwall/Post Interruptions | No (Without) |
| Color | Natural |
| Contact Current Rating | 6A |
| Contact Gender | Male |
| Contact Material | Copper Alloy |
| Contact Plating | Tin, Matte |
| Contact Retention | No (Without) |
| Contact Shape | Square |
| Contact Style | Straight |
| Contact Type | Tab |
| Current Rating | 2A |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Height | 15.5mm |
| Housing Color | Natural |
| Length | 32.6mm |
| Material | Nylon |
| Mating Retention | Yes (With) |
| Max Operating Temperature | 248°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Contacts | 12 |
| Number of Positions | 12 |
| Number of Rows | 1 |
| Orientation | Vertical |
| Package Quantity | 90 |
| Packaging | Carton |
| PCB Mounting Orientation | Vertical |
| Pitch | 2.5mm |
| Plating | Tin |
| Preloaded | Yes |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Row Spacing | 3.75mm |
| Tail Length | 0.11inch |
| Termination | Through Hole |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1-1971818-2 Datasheet
Download the complete datasheet for TE Connectivity 1-1971818-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

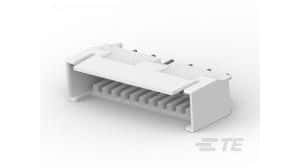

Product Images
