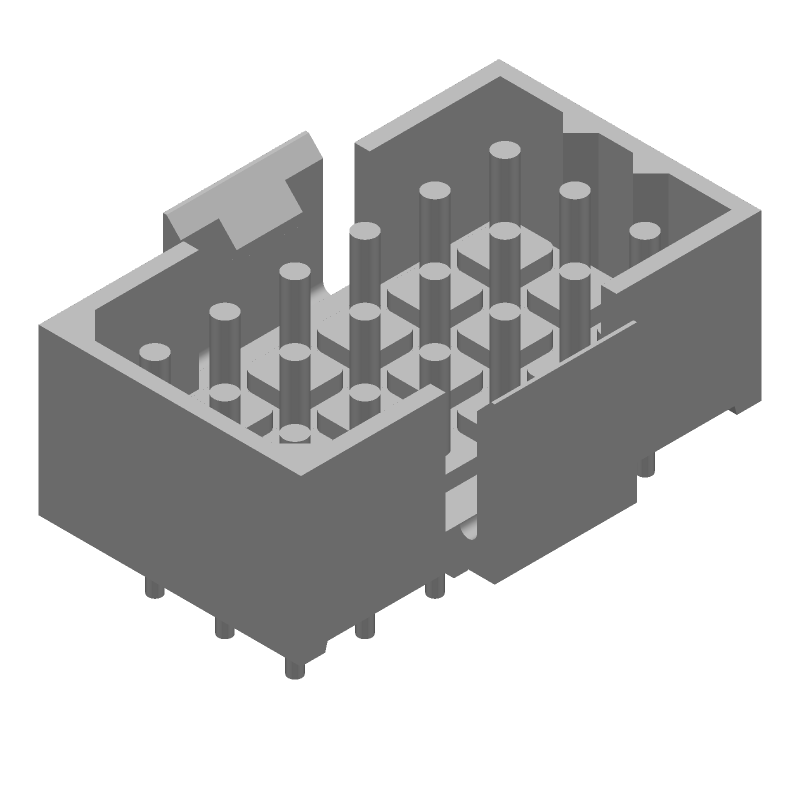

Rectangular connector, wire-to-board system, featuring 18 male pin contacts with gold-plated copper alloy construction. This straight, shrouded connector offers a 7.5A contact current rating and a 14A overall current rating, with a 600V AC/600.6kV DC voltage rating. Designed for through-hole mounting on PCBs with a 0.197-inch pitch, it operates within a -55°C to 130°C temperature range and boasts UL and VDE approvals. The red housing is UL94 V-0 flammability rated and lead-free.
Current Rating14A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 1-207444-1 technical specifications.
General
Approvals
UL
Color
Red
Connector System
Wire-to-Board
Contact Current Rating
7.5A
Contact Material
Copper Alloy
Contact Plating
Gold
Contact Retention
Yes (With)
Contact Type
Male Pin
Current Rating
14A
Depth
24.23mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Male
Height
24.23mm
Housing Color
Red
Lead Free
Lead Free
Length
32.84mm
Mating Alignment
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
130°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
600V
Max Voltage Rating (DC)
600.6kV
Mount
Through Hole
Number of Contacts
18
Number of Ports
1
Number of Positions
18
Number of Rows
6
Orientation
Straight
Package Quantity
40
Packaging
Tray
PCB Mount Retention
Without
PCB Mounting Orientation
Vertical
PCB Thickness
0.063inch
Pitch
0.197inch
Plating Thickness
3.81um
Radiation Hardening
No
RoHS Compliant
Yes
Row Spacing
0.197inch
Series
Metrimate
Shrouded
Yes (With)
Tail Length
0.181inch
Termination
Solder
VDE Tested
Yes
Width
47.32mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1-207444-1 Datasheet
Download the complete datasheet for TE Connectivity 1-207444-1 to view detailed technical specifications.
