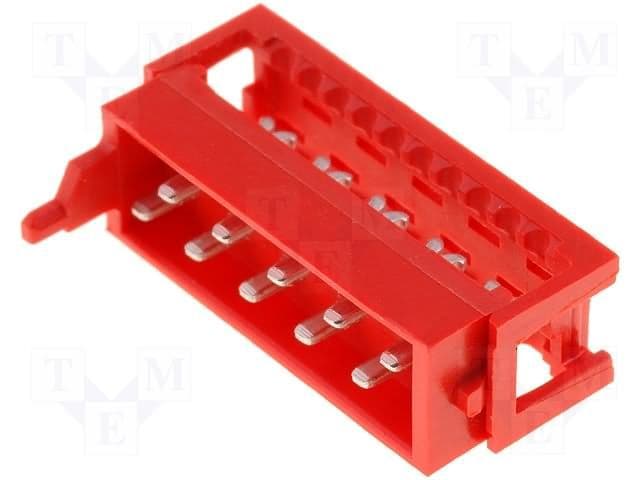

1-215083-0

10 Pos 1.27mm IDC RA Header, 1.5A, 230V, Red

10-position, 2-row shrouded header with a 1.27mm lead pitch, designed for wire-to-board applications. Features right-angle orientation and IDC termination for 28AWG ribbon cable. Offers a 1.5A current rating and 230V voltage rating, with a maximum operating temperature of 105°C. Constructed with bronze contacts plated in tin, housed in red UL94 V-0 compliant material.

Voltage Rating230V

Current Rating1.5A

MountingFree Hanging, Cable

Quick Jump:

Technical Specifications

TE Connectivity 1-215083-0 technical specifications.

General

Board Standoff	No (Without)
Color	Red
Connector System	Wire-to-Board
Contact Current Rating	1.5A
Contact Gender	Male
Contact Material	Bronze
Contact Plating	Tin
Contact Type	Male Pin
Current Rating	1.5A
Depth	5.1mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Male
Height	6.8mm
Housing Color	Red
Insulation Diameter	0.035inch
Lead Free	Not Applicable
Lead Pitch	1.27mm
Length	16.2mm
Mating Alignment	No (Without)
Mating Retention	No (Without)
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Max Voltage Rating (AC)	230V
Mount	Free Hanging, Cable
Number of Contacts	10
Number of Positions	10
Number of Rows	2
Orientation	Right Angle
Package Quantity	2500
Packaging	Tape and Reel
PCB Mount Alignment	No (Without)
PCB Mount Retention	Without
PCB Mounting Orientation	Vertical
Pitch	0.05inch
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Row Spacing	0.059inch
Series	Micro-MaTch
Shrouded	Yes (With)
Termination	IDC
Voltage Rating	230V
Wire/Cable Gauge	28AWG
Wire/Cable Type	Ribbon
