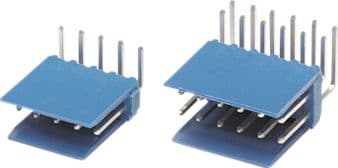

Right-angle shrouded header with 10 positions and a 2.54mm lead pitch. Features male pin contacts made of bronze with tin plating and a 3A current rating. The blue thermoplastic housing offers UL94 V-0 flammability rating and operates from -55°C to 105°C. This through-hole mount connector is RoHS compliant and rated for 500V working voltage.
Voltage Rating500V
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 1-281698-0 technical specifications.
General
Approvals
CSA
Board Standoff
No (Without)
Color
Blue
Contact Current Rating
3A
Contact Finish - Mating
TIN
Contact Gender
Male
Contact Material
Bronze
Contact Mating Length
6.75mm
Contact Plating
Tin
Contact Post Length
2.9mm
Contact Protection
Yes (With)
Contact Shape
Square
Contact Type
Male Pin
Current Rating
3A
Depth
12.8mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gasket
No (Without)
Gender
Male
Housing Color
Blue
Insulation Color
Blue
Insulation Material
Thermoplastic
Keyed
No
Lead Pitch
2.54mm
Length
25.4mm
Material
Glass, Polyester
Mating Alignment
No (Without)
Mating Connector Lock
No (Without)
Mating Cycles
30
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Contacts
10
Number of Poles
10
Number of Positions
10
Number of Rows
1
Orientation
Right Angle
Package Quantity
500
Packaging
Bulk
PCB Mount Retention
Without
PCB Mounting Orientation
Right Angle
Pitch
2.54mm
Reach SVHC Compliant
No
RoHS Compliant
Yes
Row Spacing
2.54mm
Selectively Loaded
No (Without)
Series
HE13/HE14
Shrouded End Dimension
1.27mm
Stabilizers
No (Without)
Strain Relief
No (Without)
Termination
Through Hole
Working Voltage
500V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1-281698-0 Datasheet
Download the complete datasheet for TE Connectivity 1-281698-0 to view detailed technical specifications.
