PCB mount terminal block with 12 positions and 12 circuits, featuring a 2.54mm pitch and straight orientation. Rated for 10A current and 150V AC, this screwless terminal block utilizes brass contacts with tin plating. The green housing is constructed from UL94 V-0 rated material, operating between -40°C and 105°C. This RoHS compliant component is designed for through-hole mounting and accepts wire gauges from 30AWG.
Voltage150V
Current10A
Voltage Rating150V
Current Rating10A
Quick Jump:
Technical Specifications
TE Connectivity 1-282834-2 technical specifications.
General
| Closed End | No (Without) |
| Color | Green |
| Contact Material | Brass |
| Contact Plating | Tin |
| Current | 10A |
| Current Rating | 10A |
| Depth | 6.5mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Housing Color | Green |
| Interlock | No (Without) |
| Length | 30.94mm |
| Max Current Rating | 10A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage (AC) | 150V |
| Max Voltage Rating (AC) | 150V |
| Mount | Through Hole |
| Number of Circuits | 12 |
| Number of Contacts | 12 |
| Number of Levels | 1 |
| Number of Positions | 12 |
| Number of Positions Per Level | 12 |
| Number of Rows | 1 |
| Operating Supply Voltage | 150V |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Box |
| Pitch | 2.54mm |
| Plating | Brass, Steel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Screw Flange | No (Without) |
| Screwless Terminal Block | Yes (With) |
| Series | Buchanan |
| Side Stackable | Yes (With) |
| Tail Length | 3.4mm |
| Termination | Solder |
| Voltage | 150V |
| Voltage Rating | 150V |
| Wire Gauge (Max) | 30AWG |
| Wire Gauge (Min) | 30AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1-282834-2 Datasheet
Download the complete datasheet for TE Connectivity 1-282834-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

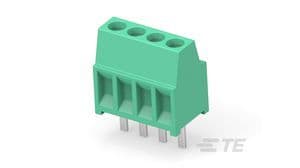

Product Images
