10-position, 1-level, straight terminal block with 5.08mm pitch. Features brass contacts with tin plating, rated for 13.5A and 250V AC. Constructed from green Nylon housing with UL94 V-0 flammability rating. Designed for PCB through-hole mounting with solder termination. Includes interlock and side stackable features.
Voltage300V
Current13.5A
Voltage Rating250V
Current Rating13.5A
Quick Jump:
Technical Specifications
TE Connectivity 1-282837-0 technical specifications.
General
Closed End
No (Without)
Color
Green
Contact Material
Brass
Contact Plating
Tin
Current
13.5A
Current Rating
13.5A
Depth
8.2mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Female
Housing Color
Green
Interlock
Yes (With)
Lead Free
Lead Free
Length
51.4mm
Material
Nylon
Max Current Rating
13.5A
Max Supply Voltage (AC)
250V
Max Voltage Rating (AC)
250V
Mount
Through Hole, PCB
Number of Circuits
10
Number of Contacts
10
Number of Levels
1
Number of Positions
10
Number of Positions Per Level
10
Number of Rows
1
Orientation
Straight
Package Quantity
100
Packaging
Bulk
Pitch
5.08mm
Plating
Brass
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Screw Flange
No (Without)
Screwless Terminal Block
No (Without)
Series
Buchanan
Side Stackable
Yes (With)
Tail Length
3.5mm
Termination
Solder
Voltage
300V
Voltage Rating
250V
Width
8mm
Wire Gauge (Max)
28AWG
Wire Gauge (Min)
16AWG
Wire/Cable Gauge
30AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1-282837-0 Datasheet
Download the complete datasheet for TE Connectivity 1-282837-0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

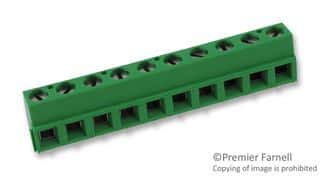

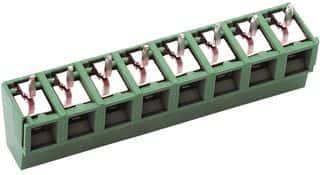

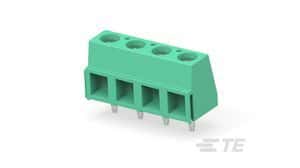

Product Images
