General purpose terminal block with 10 positions and 10 circuits. Features straight, through-hole mounting with a 10.16mm pitch and 17.5A current rating. Constructed with brass contacts plated in tin, housed in green UL94 V-0 rated plastic. Includes interlock and side stackable capabilities, with screw termination and a 600V voltage rating.
Voltage600V
Current17.5A
Voltage Rating600V
Current Rating17.5A
Quick Jump:
Technical Specifications
TE Connectivity 1-282843-0 technical specifications.
General
| Closed End | No (Without) |
| Color | Green |
| Contact Material | Brass |
| Contact Plating | Tin |
| Current | 17.5A |
| Current Rating | 17.5A |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Housing Color | Green |
| Interlock | Yes (With) |
| Max Current Rating | 17.5A |
| Mount | Through Hole |
| Number of Circuits | 10 |
| Number of Contacts | 10 |
| Number of Levels | 1 |
| Number of Positions | 10 |
| Number of Positions Per Level | 10 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 50 |
| Packaging | Bulk |
| Pitch | 0.4inch |
| Plating | Brass |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Screw Flange | No (Without) |
| Screwless Terminal Block | Yes (With) |
| Series | Buchanan |
| Side Stackable | Yes (With) |
| Tail Length | 3.5mm |
| Termination | Screw |
| Voltage | 600V |
| Voltage Rating | 600V |
| Wire Gauge (Max) | 30AWG |
| Wire Gauge (Min) | 30AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1-282843-0 Datasheet
Download the complete datasheet for TE Connectivity 1-282843-0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

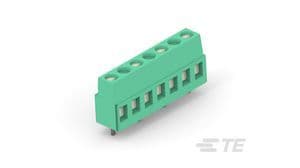

Product Images
