12-position, 1-level terminal block with screwless terminal design. Features straight, through-hole mounting with solder termination and a 10mm pitch. Rated for 24A and 600V, with brass contacts plated in tin. Housing is green, UL94 V-0 flammability rated, and operates from -40°C to 105°C.
Voltage600V
Current24A
Voltage Rating600V
Current Rating24A
Quick Jump:
Technical Specifications
TE Connectivity 1-282858-2 technical specifications.
General
Closed End
No (Without)
Color
Green
Contact Material
Brass
Contact Plating
Tin
Current
24A
Current Rating
24A
Depth
10mm
ELV
Compliant
Flammability Rating
UL94 V-0
Housing Color
Green
Interlock
Yes (With)
Length
115.5mm
Max Current Rating
24A
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Supply Voltage (AC)
600V
Max Voltage Rating (AC)
600V
Mount
Through Hole
Number of Circuits
12
Number of Contacts
12
Number of Levels
1
Number of Positions
12
Number of Positions Per Level
12
Number of Rows
1
Orientation
Straight
Package Quantity
25
Packaging
Carton
Pitch
0.394inch
Plating
Brass
Radiation Hardening
No
RoHS Compliant
Yes
Screw Flange
No (Without)
Screwless Terminal Block
Yes (With)
Series
Buchanan
Side Stackable
No (Without)
Tail Length
3.5mm
Termination
Solder
Voltage
600V
Voltage Rating
600V
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
30AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1-282858-2 Datasheet
Download the complete datasheet for TE Connectivity 1-282858-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

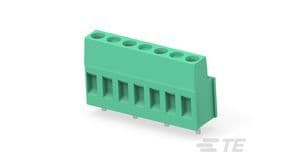

Product Images
