3-position, 1-row, straight header terminal block with 5mm pitch. Features brass contacts with tin plating, a 13.5A current rating, and 300V voltage rating. Designed for through-hole mounting with solder termination and a 3.5mm tail length. Housing is green, UL94 V-0 flammability rated, and includes interlock functionality. Operates between -40°C and 105°C, with a maximum wire gauge of 30AWG and minimum of 16AWG.
Voltage300V
Current13.5A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 1-282884-1 technical specifications.
General
| Closed End | No (Without) |
| Color | Green |
| Contact Material | Brass |
| Contact Plating | Tin |
| Current | 13.5A |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Housing Color | Green |
| Interlock | Yes (With) |
| Max Current Rating | 13.5A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Contacts | 3 |
| Number of Levels | 1 |
| Number of Positions | 3 |
| Number of Positions Per Level | 3 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 200 |
| Packaging | Bulk |
| Pitch | 5mm |
| Plating | Brass |
| RoHS Compliant | Yes |
| Screw Flange | No (Without) |
| Screwless Terminal Block | Yes (With) |
| Series | Buchanan |
| Side Stackable | Yes (With) |
| Tail Length | 3.5mm |
| Termination | Screw |
| Voltage | 300V |
| Wire Gauge (Max) | 30AWG |
| Wire Gauge (Min) | 16AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1-282884-1 Datasheet
Download the complete datasheet for TE Connectivity 1-282884-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

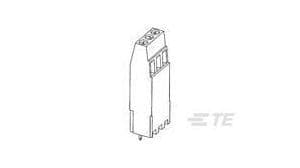

Product Images
