10-position, 1-level, straight terminal block with 3.81mm pitch. Features brass contacts with tin plating, rated for 12A and 300V AC. Housing is green, UL94 V-0 flammability rated, and includes interlock and side-stackable capabilities. Termination is solder, with a tail length of 3.5mm. Operating temperature range is -40°C to 105°C.
Voltage300V
Current12A
Voltage Rating300V
Current Rating12A
Quick Jump:
Technical Specifications
TE Connectivity 1-284392-0 technical specifications.
General
Closed End
No (Without)
Color
Green
Contact Material
Brass
Contact Plating
Tin
Current
12A
Current Rating
12A
Depth
8.2mm
ELV
Compliant
Flammability Rating
UL94 V-0
Housing Color
Green
Interlock
Yes (With)
Length
38.6mm
Max Current Rating
12A
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Supply Voltage (AC)
300V
Max Voltage Rating (AC)
300V
Mount
Through Hole
Number of Circuits
10
Number of Contacts
10
Number of Levels
1
Number of Positions
10
Number of Positions Per Level
10
Number of Rows
1
Orientation
Straight
Package Quantity
100
Packaging
Box
Pitch
0.1499inch
Plating
Brass
Radiation Hardening
No
RoHS Compliant
Yes
Screw Flange
No (Without)
Screwless Terminal Block
No (Without)
Series
Buchanan
Shrouded
Yes (With)
Side Stackable
Yes (With)
Tail Length
3.5mm
Termination
Solder
Voltage
300V
Voltage Rating
300V
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
30AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1-284392-0 Datasheet
Download the complete datasheet for TE Connectivity 1-284392-0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

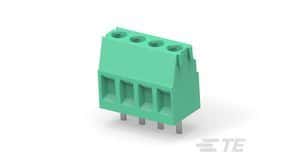

Product Images
