General purpose terminal block, 10 positions, 3.5mm pitch, right-angle cable mount. Features 11A current rating per contact, 300V AC voltage rating, and screw termination. Constructed with green housing, bronze contacts with tin plating, and a UL94 V-0 flammability rating. Operates within a -40°C to 110°C temperature range.
Voltage300V
Current11A
Current Rating11A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 1-284506-0 technical specifications.
General
Color
Green
Contact Material
Bronze
Contact Plating
Tin
Current
11A
Current Rating
11A
Depth
15.5mm
ELV
Compliant
Flammability Rating
UL94 V-0
Housing Color
Green
Interlock
No (Without)
Lead Free
Lead Free
Length
35mm
Max Current Rating
11A
Max Operating Temperature
110°C
Min Operating Temperature
-40°C
Max Supply Voltage (AC)
300V
Max Voltage Rating (AC)
300V
Mount
Through Hole
Number of Circuits
10
Number of Contacts
10
Number of Levels
1
Number of Positions
10
Number of Positions Per Level
10
Number of Rows
1
Orientation
Right Angle
Package Quantity
100
Packaging
Bulk
Pitch
3.5mm
Radiation Hardening
No
RoHS Compliant
Yes
Screw Flange
No (Without)
Screwless Terminal Block
No (Without)
Series
Buchanan
Shrouded
No (Without)
Side Stackable
Yes (With)
Termination
Screw
Voltage
300V
Voltage Rating (AC)
300V
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
30AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1-284506-0 Datasheet
Download the complete datasheet for TE Connectivity 1-284506-0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

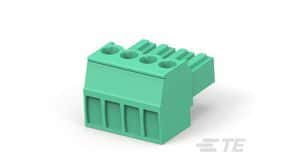

Product Images
