10-position, 1-row, straight shrouded header for wire-to-board connections. Features a 3.5mm pitch, 11A current rating, and 300V AC voltage rating. Constructed with bronze contacts plated in tin, housed in green UL94 V-0 rated plastic. Operates within a -40°C to 110°C temperature range, with a 3.4mm solder tail for through-hole termination.
Voltage300V
Current11A
Current Rating11A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 1-284516-0 technical specifications.
General
Closed End
Yes (With)
Color
Green
Contact Material
Bronze
Contact Plating
Tin
Current
11A
Current Rating
11A
Depth
7.2mm
ELV
Compliant
Flammability Rating
UL94 V-0
Housing Color
Green
Interlock
No (Without)
Length
31.5mm
Max Current Rating
11A
Max Operating Temperature
110°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
300V
Mount
Through Hole
Number of Contacts
10
Number of Levels
1
Number of Positions
10
Number of Positions Per Level
10
Number of Rows
1
Orientation
Straight
Package Quantity
100
Packaging
Bulk
Pitch
3.5mm
Radiation Hardening
No
RoHS Compliant
No
Screw Flange
No (Without)
Screwless Terminal Block
No (Without)
Series
Buchanan
Shrouded
Yes (With)
Side Stackable
No (Without)
Tail Length
3.4mm
Termination
Solder
Voltage
300V
Voltage Rating (AC)
300V
Compliance
RoHS
Not CompliantNo
Datasheet
TE Connectivity 1-284516-0 Datasheet
Download the complete datasheet for TE Connectivity 1-284516-0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

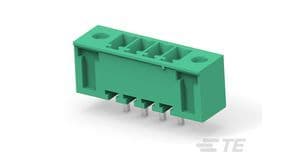

Product Images
