TE CONNECTIVITY

1-292228-1

Datasheet

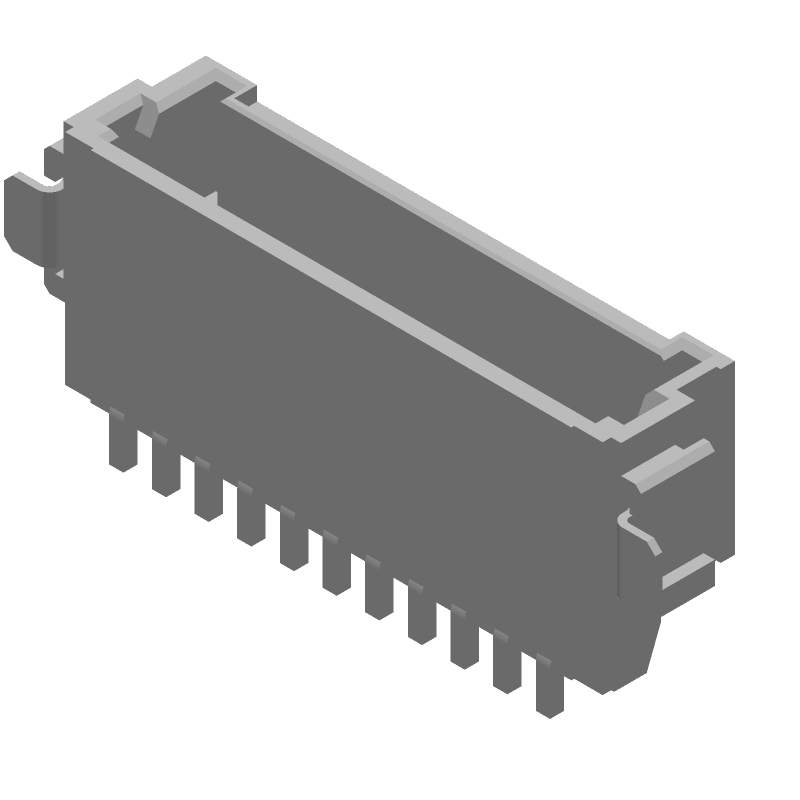

11 Pos 1.5mm RA SMD Header, 2A, Tin, Nylon, UL94 V-0

TE Connectivity

1-292228-1

Name: 1-292228-1 TE Connectivity
Brand: TE Connectivity
SKU: 1-292228-1

11 Pos 1.5mm RA SMD Header, 2A, Tin, Nylon, UL94 V-0

1.5mm pitch shrouded header, right angle surface mount, 11 positions, 1 row, male pin contacts with brass material and tin plating. Features a 2A contact current rating, 50V AC voltage rating, and operates from -22°C to 221°C. Constructed with a nylon insulation material and a natural housing color. Compliant with UL, RoHS, and ELV standards, with a UL94 V-0 flammability rating.

MountingSurface Mount

Quick Jump:

Technical Specifications

TE Connectivity 1-292228-1 technical specifications.

General

Approvals	UL
Backwall/Post Interruptions	No (Without)
Connector System	Wire-to-Board
Contact Current Rating	2A
Contact Finish - Mating	TIN
Contact Gender	Male
Contact Material	Brass
Contact Mating Length	2.4mm
Contact Plating	Tin
Contact Retention	No (Without)
Contact Shape	Square
Contact Type	Male Pin
ELV	Compliant
Flammability Rating	UL94 V-0
Height	7.7mm
Housing Color	Natural
Insulation Color	Beige
Insulation Diameter	0.041inch
Insulation Material	Nylon
Lead Free	Lead Free
Length	21mm
Mating Alignment	Yes (With)
Mating Retention	Yes (With)
Max Operating Temperature	221°C
Min Operating Temperature	-22°C
Mount	Surface Mount
Number of Contacts	11
Number of Positions	11
Number of Rows	1
Orientation	Right Angle
Package Quantity	700
Packaging	Tape and Reel
PCB Mount Alignment	No (Without)
PCB Mount Retention	With
PCB Mounting Orientation	Right Angle
PCB Thickness	0.031inch
Pitch	1.5mm
Radiation Hardening	No
RoHS Compliant	Yes
Sealable	No (Without)
Series	Mini CT
Shape	Rectangular
Termination	SMD/SMT
Voltage Rating (AC)	50V
Width	0.192inch
Wire/Cable Gauge	24AWG
Wire/Cable Type	Discrete
