Right-angle, wire-to-board power connector featuring 10 male pin contacts with tin plating and a 0.2-inch pitch. This 10-position, 2-row connector offers an 8A current rating and a 600V AC voltage rating, with a maximum operating temperature of 221°C. Constructed with a black, UL94 V-0 flammability rated housing, it is RoHS and Halogen Free compliant. Designed for through-hole mounting, it includes mating alignment and retention features.
Current Rating8A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 1-316080-5 technical specifications.
General
Approvals
UL
Color
Black
Connector System
Wire-to-Board
Contact Current Rating
8A
Contact Plating
Tin
Contact Retention
No (Without)
Contact Type
Male Pin
Current Rating
8A
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Male
Halogen Free
Halogen Free
Height
0.668inch
Housing Color
Black
Lead Free
Lead Free
Length
1.35inch
Mating Alignment
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
221°C
Min Operating Temperature
-67°C
Max Voltage Rating (AC)
600V
Mount
Through Hole
Number of Contacts
10
Number of Positions
10
Number of Rows
2
Operating Supply Voltage
600V
Orientation
Right Angle
Package Quantity
14
Packaging
Rail/Tube
PCB Mount Alignment
No (Without)
PCB Mount Retention
With
PCB Mounting Orientation
Right Angle
PCB Thickness
0.063inch
Pitch
0.2inch
Preloaded
Yes
Radiation Hardening
No
RoHS Compliant
Yes
Row Spacing
0.3inch
Sealable
No (Without)
Selectively Loaded
No (Without)
Series
Dynamic 3200
Shape
Rectangular
Shielding
Unshielded
Shrouded
Yes (With)
Strain Relief
No (Without)
Tail Length
3.8mm
Termination
Solder
VDE Tested
No
Width
0.368inch
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1-316080-5 Datasheet
Download the complete datasheet for TE Connectivity 1-316080-5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

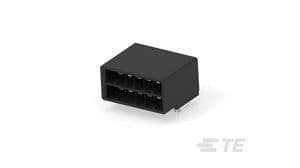

Product Images
