25-position, high-density D-subminiature plug connector with straight, through-hole mounting. Features bronze contacts with gold and tin plating, rated for 6A current. Housing is black, made of steel shell and UL94 V-0 rated dielectric material. Includes mating connector lock and PCB mount retention for vertical PCB mounting.
Current Rating6A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 1-338311-2 technical specifications.
General
Color
Black
Contact Material
Bronze
Contact Plating
Gold, Tin
Contact Post Length
3.2mm
Contact Type
Signal
Current Rating
6A
Depth
12.6mm
Dielectric Material
Glass
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Male
Housing Color
Black
Lead Free
Lead Free
Length
53.1mm
Mating Connector Lock
Yes (With)
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Contacts
25
Number of Ports
1
Number of Positions
25
Number of Rows
2
Orientation
Straight
Package Quantity
30
Packaging
Tray
PCB Mount Retention
With
PCB Mounting Orientation
Vertical
PCB Thickness
1.6mm
Pitch
2.76mm
Plating
Tin
Preloaded
Yes
Radiation Hardening
No
RoHS Compliant
Yes
Sealable
No (Without)
Series
AMPLIMITE HDP-20
Shell Material
Steel
Shell Size
3
Shielding
Unshielded
Termination
Solder
Width
11.7mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1-338311-2 Datasheet
Download the complete datasheet for TE Connectivity 1-338311-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

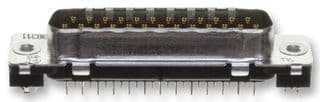

Product Images
