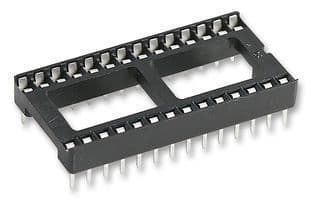

28-position dual-row DIP socket with a 2.54mm pitch, featuring straight, through-hole solder termination. Constructed with a thermoplastic body and polybutylene insulation, it utilizes bronze contacts with tin plating for reliable mating. Rated for 1A current and 250V AC, this socket operates within a temperature range of -40°C to 105°C and boasts UL94 V-0 flammability rating. Approvals include UL and CSA, with lead-free and RoHS compliance.
Current Rating1A
MountingVertical
Quick Jump:
Technical Specifications
TE Connectivity 1-390262-2 technical specifications.
General
Approvals
UL, CSA
Body Material
Thermoplastic
Contact Finish - Mating
TIN
Contact Material
Bronze
Contact Plating
Tin
Contact Post Length
3mm
Current Rating
1A
Depth
17.7mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Female
Insulation Material
Polybutylene
Lead Free
Lead Free
Lead Length
3mm
Lead Pitch
2.54mm
Length
35.56mm
Max Operating Temperature
-105°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
250V
Mount
Vertical
Number of Contacts
28
Number of Poles
28
Number of Positions
28
Number of Rows
2
Orientation
Straight
Package Quantity
17
Packaging
Rail/Tube
PCB Mounting Orientation
Horizontal
Pitch
2.54mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Row Spacing
15.24mm
Terminal Pitch
2.54mm
Termination
Through Hole
Voltage Rating (AC)
250V
Compliance
RoHS
Compliant
