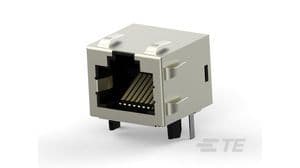

Modular RJ45 connector featuring 8 positions and 8 loaded contacts for signal applications. This right-angle, through-hole component offers a 1.5A current rating and 150V voltage rating. Constructed with bronze contacts plated in gold (360nm thickness), it operates within a -40°C to 80°C temperature range and boasts a UL94 V-0 flammability rating. The shielded, single-port design includes a black housing and is supplied in tray packaging.
Voltage Rating150V
Current Rating1.5A
MountingPanel
Quick Jump:
Technical Specifications
TE Connectivity 1-406541-5 technical specifications.
General
Circuit Application
Signal
Contact Material
Bronze
Contact Plating
Gold
Current Rating
1.5A
Depth
15.75mm
Direction
Up
Element Configuration
Single
Flammability Rating
UL94 V-0
Gender
Female
Housing Color
Black
Keyed
No
Length
17.27mm
Max Operating Temperature
80°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
150V
Mount
Panel
Number of Contacts
8
Number of Ports
1
Number of Positions
8
Number of Positions Loaded
8
Number of Rows
1
Orientation
Right Angle
Package Quantity
441
Packaging
Tray
PCB Mounting Orientation
Right Angle
PCB Thickness
1.57mm
Pitch
2.04mm
Plating Thickness
360nm
Primary Type
MODULAR
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Shielding
Shielded
Tail Length
2.54mm
Termination
Solder
Voltage Rating
150V
Compliance
RoHS
Compliant
