This Faston wire housing is made from natural nylon with a length and depth of 23.37mm. It is designed for free hanging applications and features a quick connect termination. The housing is compliant with ELV regulations and has a flammability rating of UL94 V-2. It is also RoHS compliant and available in bulk packaging.
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 1-480416-8 technical specifications.
General
| Color | Natural |
| Depth | 23.37mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-2 |
| Gender | Receptacle |
| Housing Color | Natural |
| Lead Free | Not Applicable |
| Length | 23.37mm |
| Material | Nylon, Polyamide, PA46 |
| Mount | Free Hanging |
| Number of Circuits | 1 |
| Number of Contacts | 1 |
| Number of Positions | 1 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | Faston |
| Termination | Quick Connect |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1-480416-8 Datasheet
Download the complete datasheet for TE Connectivity 1-480416-8 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

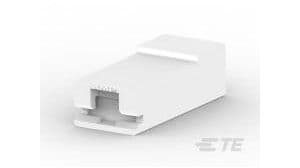

Product Images
