2-position, straight, wire-to-wire receptacle power connector with a 6.35mm pitch. Features a 19A current rating and 600V voltage rating, operating between -55°C and 125°C. This red housing is UL94 V-2 flammability rated and compliant with RoHS and ELV standards. Designed for crimp termination and panel mounting up to 2.29mm thick.
Voltage Rating600V
Current Rating19A
MountingPanel
Quick Jump:
Technical Specifications
TE Connectivity 1-480699-2 technical specifications.
General
Approvals
CSA
Color
Red
Connector System
Wire-to-Wire
Contact Gender
Female
Contact Retention
No (Without)
Contact Type
Male or Female
Current Rating
19A
Depth
27.43mm
ELV
Compliant
Flammability Rating
UL94 V-2
Gender
Receptacle
Height
13.9mm
Housing Color
Red
Lead Free
Lead Free
Length
13.97mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
600V
Mount
Panel
Number of Circuits
2
Number of Contacts
2
Number of Positions
2
Number of Rows
1
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Panel Thickness
2.29mm
Pitch
6.35mm
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
Universal MATE-N-LOK
Termination
Crimp
VDE Tested
Yes
Voltage Rating
600V
Width
13.21mm
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
10AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1-480699-2 Datasheet
Download the complete datasheet for TE Connectivity 1-480699-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

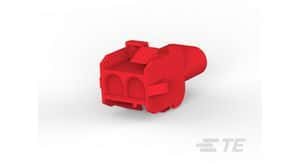

Product Images
