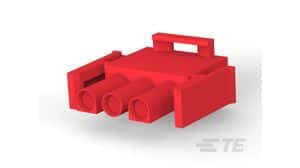

3-position, straight, male wire-to-wire power connector housing in red. Features a 19A current rating and 600V voltage rating, with a 6.35mm pitch. Designed for free-hanging, cable mounting with crimp termination. Compliant with RoHS and UL94 V-2 flammability rating. Operating temperature range from -67°C to 221°C.
Voltage Rating600V
Current Rating19A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
TE Connectivity 1-480700-2 technical specifications.
General
Approvals
CSA
Color
Red
Connector System
Wire-to-Wire
Contact Gender
Male
Contact Retention
No (Without)
Contact Type
Male or Female
Current Rating
19A
Depth
14.73mm
ELV
Compliant
Flammability Rating
UL94 V-2
Gender
Male
Housing Color
Red
Insulation Diameter
5.08mm
Lead Free
Not Applicable
Length
20.32mm
Max Operating Temperature
221°C
Min Operating Temperature
-67°C
Max Voltage Rating (AC)
600V
Mount
Free Hanging, Cable
Number of Circuits
3
Number of Contacts
3
Number of Positions
3
Number of Rows
1
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Pitch
6.35mm
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
Universal MATE-N-LOK
Termination
Crimp
VDE Tested
Yes
Voltage Rating
600V
Width
27.43mm
Wire/Cable Gauge
30AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1-480700-2 Datasheet
Download the complete datasheet for TE Connectivity 1-480700-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
