3-position, straight, wire-to-wire receptacle power connector featuring a black housing and a 19A current rating. This connector system supports male or female contacts, operates within a temperature range of -67°C to 221°C, and has a maximum voltage rating of 600V AC. It is UL94 V-2 flammability rated, RoHS compliant, and designed for panel mounting with a 2.29mm panel thickness.
Voltage Rating600V
Current Rating19A
MountingPanel
Quick Jump:
Technical Specifications
TE Connectivity 1-480701-9 technical specifications.
General
Approvals
CSA
Color
Black
Connector System
Wire-to-Wire
Contact Gender
Female
Contact Retention
No (Without)
Contact Type
Male or Female
Current Rating
19A
Depth
27.43mm
ELV
Compliant
Flammability Rating
UL94 V-2
Gender
Receptacle
Housing Color
Black
Lead Free
Not Applicable
Max Operating Temperature
221°C
Min Operating Temperature
-67°C
Max Voltage Rating (AC)
600V
Mount
Panel
Number of Circuits
3
Number of Contacts
3
Number of Positions
3
Number of Rows
1
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Panel Thickness
2.29mm
Pitch
6.35mm
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
Universal MATE-N-LOK
Termination
Crimp
VDE Tested
Yes
Voltage Rating
600V
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
10AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1-480701-9 Datasheet
Download the complete datasheet for TE Connectivity 1-480701-9 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

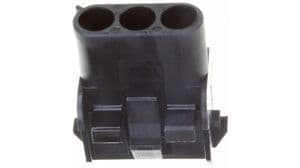

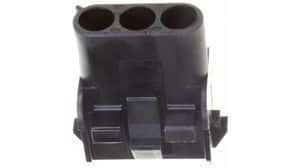

Product Images
