4-position, 1-row wire-to-wire connector with a straight, free-hanging, cable mount orientation. Features a 6.35mm pitch and 19A current rating, with a maximum operating temperature of 125°C and a minimum of -55°C. Housing is red, with male contact gender and crimp termination. Rated for 600V AC, this connector is RoHS compliant and VDE tested, with CSA approval.
Voltage Rating600V
Current Rating19A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
TE Connectivity 1-480702-2 technical specifications.
General
| Approvals | CSA |
| Color | Red |
| Connector System | Wire-to-Wire |
| Contact Gender | Male |
| Contact Retention | No (Without) |
| Contact Type | Male or Female |
| Current Rating | 19A |
| ELV | Compliant |
| Flammability Rating | UL94 V-2 |
| Gender | Male |
| Housing Color | Red |
| Lead Free | Not Applicable |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 600V |
| Mount | Free Hanging, Cable |
| Number of Circuits | 4 |
| Number of Contacts | 4 |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Pitch | 6.35mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | Universal MATE-N-LOK |
| Termination | Crimp |
| VDE Tested | Yes |
| Voltage Rating | 600V |
| Wire/Cable Gauge | 30AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1-480702-2 Datasheet
Download the complete datasheet for TE Connectivity 1-480702-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

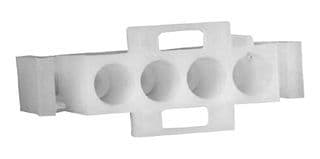

Product Images
