1-534206-0

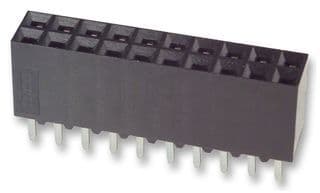

2.54mm 20 Pos Socket Strip, Straight, Thru-Hole, Gold Contact

20-position, 2-row shrouded header receptacle with 2.54mm pitch and straight, top entry, through-hole mounting. Features gold-plated bronze contacts with a 2A current rating and 762nm plating thickness. Insulation material is glass with a black housing and insulation color. Operating temperature range is -65°C to 105°C, with a voltage rating of 250V. UL94 V-0 flammability rating.

Voltage Rating250V

Current Rating2A

MountingThrough Hole

Quick Jump:

Technical Specifications

TE Connectivity 1-534206-0 technical specifications.

General

Approvals	CSA
Boss	No (Without)
Contact Current Rating	2A
Contact Finish - Mating	GOLD
Contact Material	Bronze
Contact Plating	Gold, Tin, Lead
Contact Post Length	2.92mm
Contact Shape	Square
Contact Style	Socket
Contact Type	Female Socket
Current Rating	2A
Depth	5.03mm
ELV	Non-Compliant
Flammability Rating	UL94 V-0
Gender	Receptacle
Height	5.03mm
High Temperature Compatible	No
Housing Color	Black
Insulation Color	Black
Insulation Material	Glass
Lead Free	Contains Lead
Lead Length	2.92mm
Length	25.4mm
Max Operating Temperature	105°C
Min Operating Temperature	-65°C
Mount	Through Hole
Number of Contacts	20
Number of Positions	20
Number of Rows	2
Operating Supply Voltage	333V
Orientation	Straight
Package Quantity	22
Packaging	Rail/Tube
PCB Mount Retention	Without
PCB Mounting Orientation	Vertical
PCB Thickness	1.57mm
Pitch	2.54mm
Plating	Gold
Plating Thickness	762nm
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	No
Row Spacing	0.1inch
Sealable	No (Without)
Series	AMPMODU MOD II
Stackable	Yes
Tail Length	2.92mm
Termination	Solder
Voltage Rating	250V
Width	5.03mm
