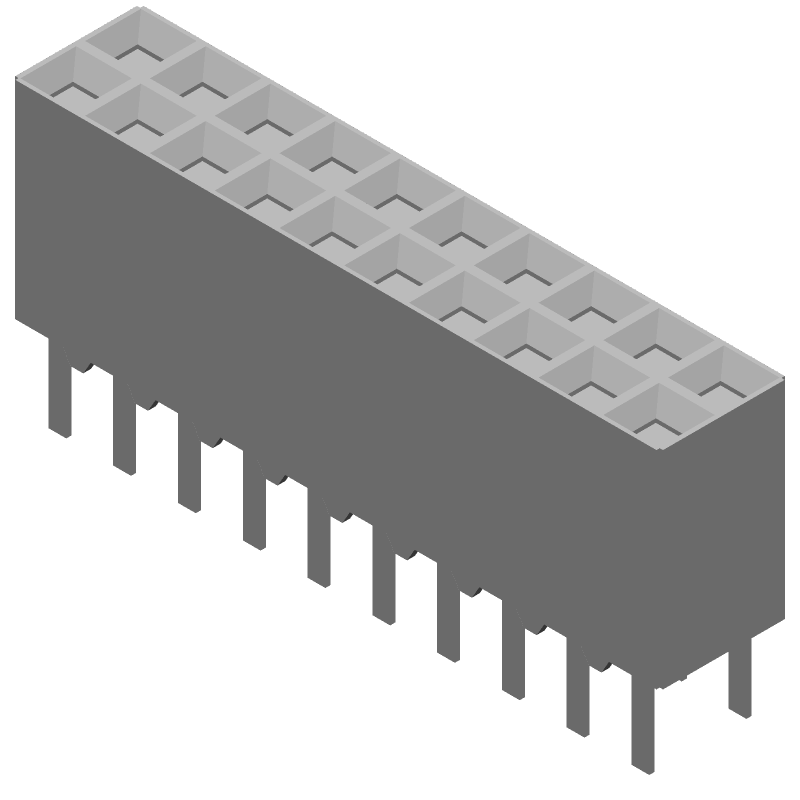

20-position, 2-row shrouded header receptacle with a 2.54mm pitch. Features gold-plated bronze female socket contacts for 2A current rating, with a straight, top-entry, through-hole termination. Housing is black, made of glass insulation, and rated UL94 V-0 for flammability. Operating temperature range is -65°C to 105°C.
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 1-534236-0 technical specifications.
General
| Boss | No (Without) |
| Color | Black |
| Contact Current Rating | 2A |
| Contact Finish - Mating | GOLD |
| Contact Material | Bronze |
| Contact Plating | Gold, Tin, Lead |
| Contact Post Length | 0.12inch |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Depth | 5.03mm |
| ELV | Non-Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Height | 5.03mm |
| High Temperature Compatible | No |
| Housing Color | Black |
| Insulation Color | Black |
| Insulation Material | Glass |
| Lead Free | Contains Lead |
| Length | 25.4mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -65°C |
| Mount | Through Hole |
| Number of Contacts | 20 |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 22 |
| Packaging | Rail/Tube |
| PCB Mount Retention | Without |
| PCB Mounting Orientation | Vertical |
| PCB Thickness | 2.4mm |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Row Spacing | 0.1inch |
| Sealable | No (Without) |
| Series | AMPMODU MOD II |
| Stackable | Yes |
| Tail Length | 0.12inch |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1-534236-0 Datasheet
Download the complete datasheet for TE Connectivity 1-534236-0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
