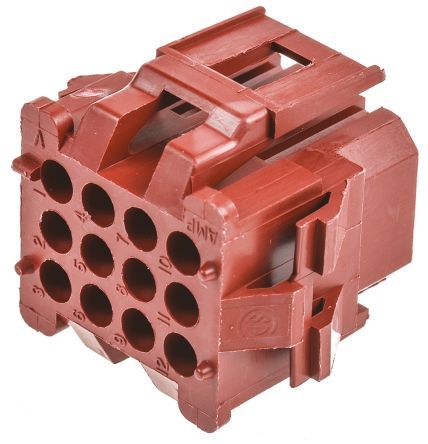

12-position wire-to-wire connector housing, featuring a straight, male configuration with female socket contacts. This miniature rectangular series component boasts a 9A current rating and 250V AC voltage rating, suitable for wire gauges from 26 to 18 AWG. Constructed from UL94 V-0 rated Nylon/Polyamide, it operates within a temperature range of -67°C to 221°C. The housing is red, with a black option available, and offers panel or snap-in mounting.
Voltage Rating250V
Current Rating9A
MountingPanel, Snap in
Quick Jump:
Technical Specifications
TE Connectivity 1-640522-0 technical specifications.
General
Approvals
CSA
Body Material
Nylon, Polyamide
Color
Black, Red
Connector System
Wire-to-Wire
Contact Gender
Male
Contact Type
Female Socket
Current Rating
9A
Depth
23.37mm
Flammability Rating
UL94 V-0
Gender
Male
Height
12.95mm
Housing Color
Red
Insulation Diameter
0.115inch
Length
0.84inch
Material
Nylon
Max Operating Temperature
221°C
Min Operating Temperature
-67°C
Max Voltage Rating (AC)
250V
Mount
Panel, Snap in
Number of Circuits
12
Number of Contacts
12
Number of Positions
12
Number of Rows
4
Number of Signal Positions
12
Orientation
Straight
Package Quantity
800
Packaging
Box
Pitch
4.19mm
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Row Spacing
4.19mm
Sealable
No (Without)
Series
MR (Miniature Rectangular)
Termination
Crimp
Voltage Rating
250V
Width
1.17inch
Wire Gauge (Max)
18AWG
Wire Gauge (Min)
26AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1-640522-0 Datasheet
Download the complete datasheet for TE Connectivity 1-640522-0 to view detailed technical specifications.
