120-position, 40-column, 3-row straight backplane connector with 2.54mm pitch. Features gold-plated bronze contacts rated for 1.5A, a glass-filled insulation material, and a grey housing. Designed for through-hole mounting with PCB retention and vertical orientation, operating from -55°C to 125°C. Compliant with ELV and RoHS standards, with a UL94 V-0 flammability rating.
MountingThrough Hole
Quick Jump:
Technical Specifications

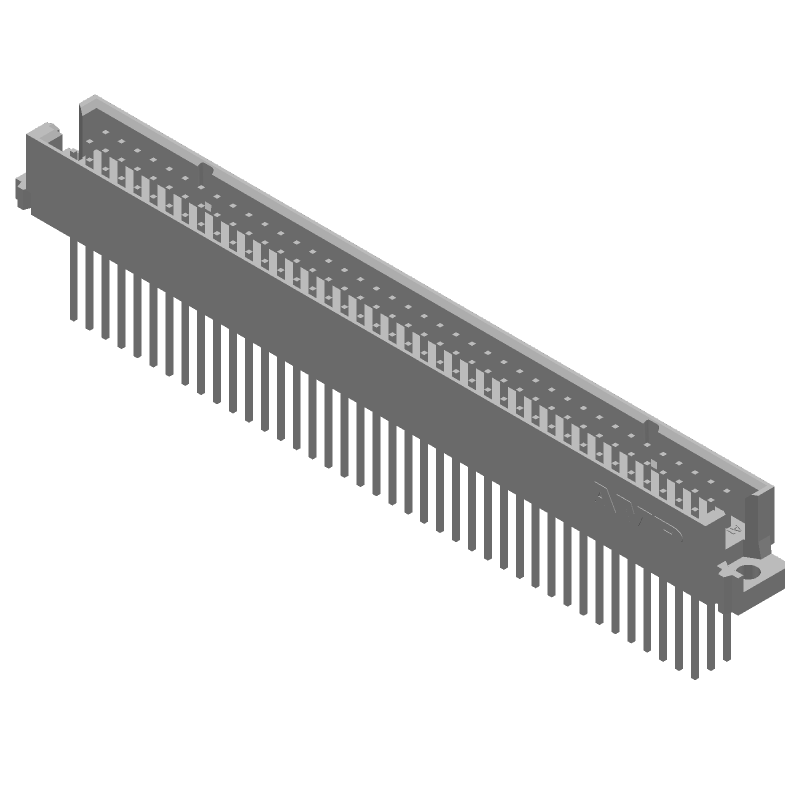

TE Connectivity 1-650920-4 technical specifications.
General
Color
Grey
Connector System
Board-to-Board
Contact Current Rating
1.5A
Contact Material
Bronze
Contact Plating
Gold, Tin, Lead
Contact Post Length
0.521inch
ELV
Compliant
Flammability Rating
UL94 V-0
Height
0.453inch
Housing Color
Grey
Insulation Material
Glass
Length
115.19mm
Make First / Break Last
No
Mating Alignment
Yes (With)
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Columns
40
Number of Contacts
120
Number of Positions
120
Number of Rows
3
Number of Signal Positions
120
Orientation
Straight
Package Quantity
1500
Packaging
Box
PCB Mount Alignment
No (Without)
PCB Mount Retention
With
PCB Mounting Orientation
Vertical
PCB Thickness
0.093inch
Pitch
2.54mm
RoHS Compliant
Yes
Row Spacing
0.1inch
Series
Eurocard
Shielding
Unshielded
Tail Length
13.23mm
Termination
Solder
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1-650920-4 Datasheet
Download the complete datasheet for TE Connectivity 1-650920-4 to view detailed technical specifications.
