Signal contact, female, straight orientation, designed for cable mounting. Features brass contact material with bright tin plating, rated for 13A current. Accommodates 16-18AWG wire gauge with a maximum insulation diameter of 2.54mm. Operating temperature range from -55°C to 125°C, RoHS compliant.
Current Rating13A
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 1-66101-9 technical specifications.
General
| Circuit Application | Signal |
| Contact Gender | Female |
| Contact Material | Brass |
| Contact Plating | Bright, Tin |
| Contact Type | Signal |
| Current Rating | 13A |
| Depth | 3.68mm |
| ELV | Compliant |
| Gender | Female |
| Height | 3.05mm |
| Insulation Diameter | 2.54mm |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Cable |
| Number of Contacts | 1 |
| Number of Ports | 1 |
| Orientation | Straight |
| Package Quantity | 1000 |
| Packaging | Loose Piece |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Multimate III+ |
| Termination | Crimp |
| Wire Gauge (Max) | 18AWG |
| Wire Gauge (Min) | 16AWG |
| Wire/Cable Gauge | 16AWG |
| Wire/Cable Type | Discrete |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1-66101-9 Datasheet
Download the complete datasheet for TE Connectivity 1-66101-9 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

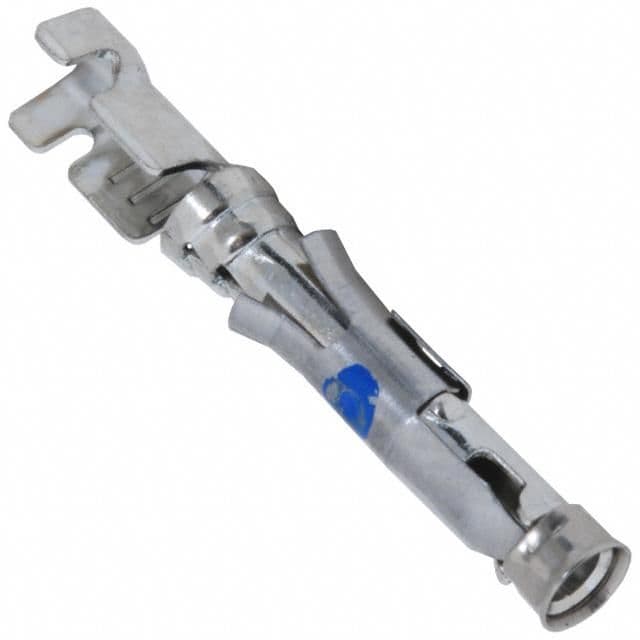

Product Images
