9-position, 2-row female D-Subminiature connector with straight orientation and IDC termination. Features a metal body and shell, black housing, and bronze contacts plated with gold and tin. Rated for 250V AC, 3.7A current, and operates from -55°C to 105°C. Includes mating connector lock and is shielded. Compliant with RoHS and UL94 V-0 flammability rating.
PackageMetal
Voltage Rating250V
Current Rating3.7A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
TE Connectivity 1-745491-7 technical specifications.
General
Approvals
UL, CSA
Body Material
Metal
Package/Case
Metal
Color
Black
Contact Material
Bronze
Contact Plating
Gold, Tin
Contact Type
Signal
Current Rating
3.7A
Depth
21.71mm
Dielectric Material
Glass
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Female
Housing Color
Black
Insulation Diameter
1.52mm
Lead Free
Lead Free
Length
31.19mm
Material
Metal
Mating Connector Lock
Yes (With)
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Max Supply Voltage (AC)
250V
Max Voltage Rating (AC)
250V
Mount
Free Hanging, Cable
Number of Contacts
9
Number of Ports
1
Number of Positions
9
Number of Rows
2
Orientation
Straight
Package Quantity
140
Packaging
Bulk
Pitch
0.054inch
Plating
Tin
Preloaded
Yes
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
AMPLIMITE HDE-20
Shell Material
Steel
Shell Size
1
Shielding
Shielded
Termination
IDC
Voltage Rating
250V
Width
12.92mm
Wire Gauge (Max)
26AWG
Wire Gauge (Min)
22AWG
Wire/Cable Type
Round
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1-745491-7 Datasheet
Download the complete datasheet for TE Connectivity 1-745491-7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

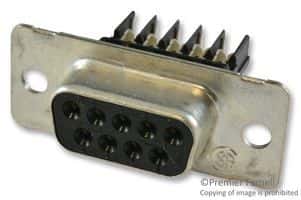

Product Images
