Female power contact for wire-to-wire connector systems. Features a straight, cable mount orientation with crimp termination for discrete wires. Rated for 19A current with a 7A contact current rating, accommodating 14-20AWG wire gauges. Constructed from brass with tin and gold plating over a nickel underplate, operating between -55°C and 120°C. This RoHS compliant component is supplied in tape and reel packaging.
Current Rating19A
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 1-770193-0 technical specifications.
General
Approvals
UL
Connector System
Wire-to-Wire
Contact Current Rating
7A
Contact Material
Brass
Contact Plating
Tin, Gold
Contact Type
Power
Current Rating
19A
Depth
4.19mm
ELV
Compliant
Gender
Female
Height
4.7mm
Insulation Diameter
0.13inch
Lead Free
Not Applicable
Length
25.14mm
Max Operating Temperature
120°C
Min Operating Temperature
-55°C
Mount
Cable
Orientation
Straight
Package Quantity
3500
Packaging
Tape and Reel
Plating Thickness
1.27um
RoHS Compliant
Yes
Series
Universal MATE-N-LOK II
Termination
Crimp
Underplate Material
Nickel
VDE Tested
Yes
Wire Gauge (Max)
20AWG
Wire Gauge (Min)
14AWG
Wire/Cable Gauge
14AWG
Wire/Cable Type
Discrete
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1-770193-0 Datasheet
Download the complete datasheet for TE Connectivity 1-770193-0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

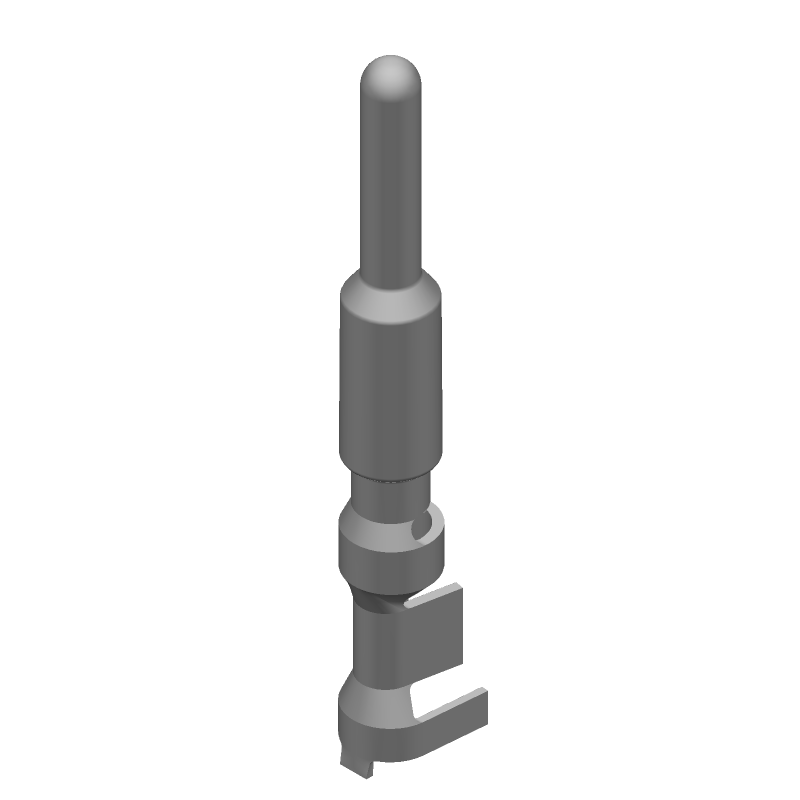

Product Images
