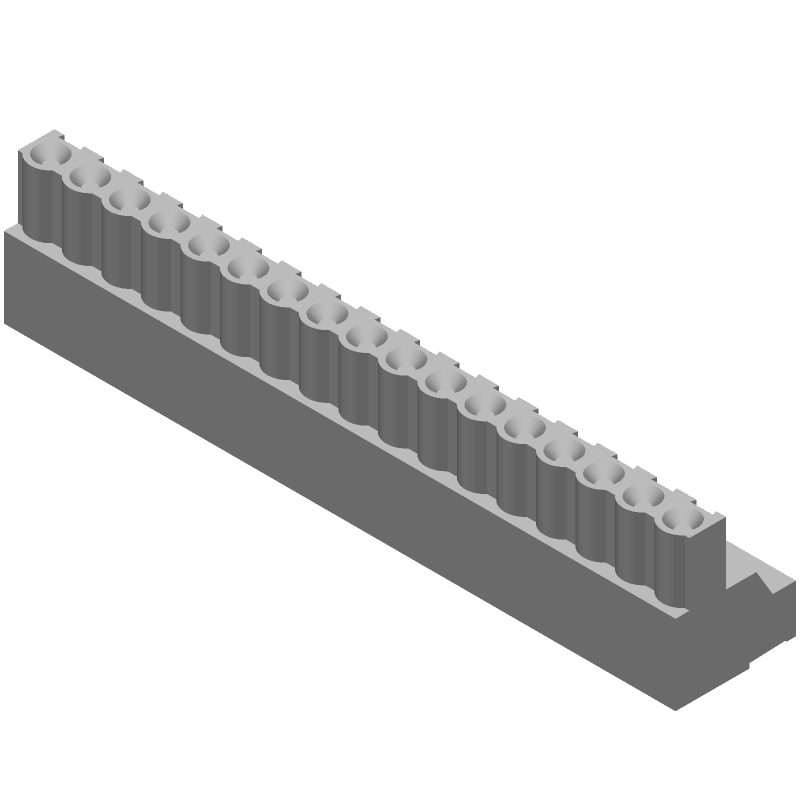

17-position, right-angle, cable-mount terminal block with 5.08mm pitch. Features 15A current rating per contact, 300V AC voltage rating, and tin-plated bronze contacts. Operates from -40°C to 110°C, with UL94 V-0 flammability rating. Accommodates wire gauges from 12AWG to 30AWG. Side stackable design with screw termination.
Voltage300V
Current15A
Current Rating15A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 1-796634-7 technical specifications.
General
Color
Green
Contact Material
Bronze
Contact Plating
Tin
Current
15A
Current Rating
15A
ELV
Compliant
Flammability Rating
UL94 V-0
Housing Color
Green
Interlock
No (Without)
Max Current Rating
15A
Max Operating Temperature
110°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
300V
Mount
Through Hole
Number of Circuits
17
Number of Contacts
17
Number of Levels
1
Number of Positions
17
Number of Positions Per Level
17
Number of Rows
1
Orientation
Right Angle
Package Quantity
50
Packaging
Box
Pitch
5.08mm
Radiation Hardening
No
RoHS Compliant
Yes
Screw Flange
No (Without)
Screwless Terminal Block
No (Without)
Series
Buchanan
Shrouded
No (Without)
Side Stackable
Yes (With)
Termination
Screw
Voltage
300V
Voltage Rating (AC)
300V
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
12AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1-796634-7 Datasheet
Download the complete datasheet for TE Connectivity 1-796634-7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
