10-position, 10-pole male pin header with a 2.54mm pitch and straight orientation for through-hole mounting. Features gold-plated CuZn contacts with a 5A contact current rating and a 3A overall current rating, suitable for operation between -65°C and 105°C. The green PBT housing is UL94 V-0 flammability rated and CSA approved.
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 1-825433-0 technical specifications.
General
Approvals
CSA
Board Standoff
No (Without)
Color
Green
Contact Current Rating
5A
Contact Finish - Mating
GOLD
Contact Gender
Male
Contact Material
CuZn
Contact Mating Length
6.7mm
Contact Plating
Gold, Tin
Contact Post Length
0.1259inch
Contact Protection
No (Without)
Contact Shape
Square
Contact Type
Male Pin
Current Rating
3A
Depth
3.69mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gasket
No (Without)
Gender
Male
High Speed Serial Data Connector
No
High Temperature Housing
No
Housing Color
Green
Insulation Color
Green
Insulation Material
PBT
Keyed
No
Lead Pitch
2.54mm
Length
25.4mm
Mating Alignment
No (Without)
Mating Connector Lock
No (Without)
Max Operating Temperature
105°C
Min Operating Temperature
-65°C
Mount
Through Hole
Number of Contacts
10
Number of Poles
10
Number of Positions
10
Number of Rows
1
Orientation
Straight
Package Quantity
500
Packaging
Box
PCB Mount Retention
Without
PCB Mounting Orientation
Vertical
Pitch
2.54mm
Plating Thickness
2.5um
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Row Spacing
2.54mm
Selectively Loaded
No (Without)
Series
AMPMODU MOD II
Stabilizers
No (Without)
Strain Relief
No (Without)
Termination
Through Hole
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1-825433-0 Datasheet
Download the complete datasheet for TE Connectivity 1-825433-0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

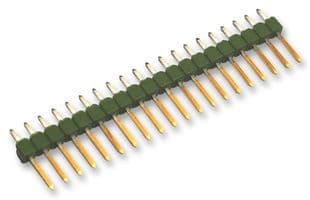

Product Images
