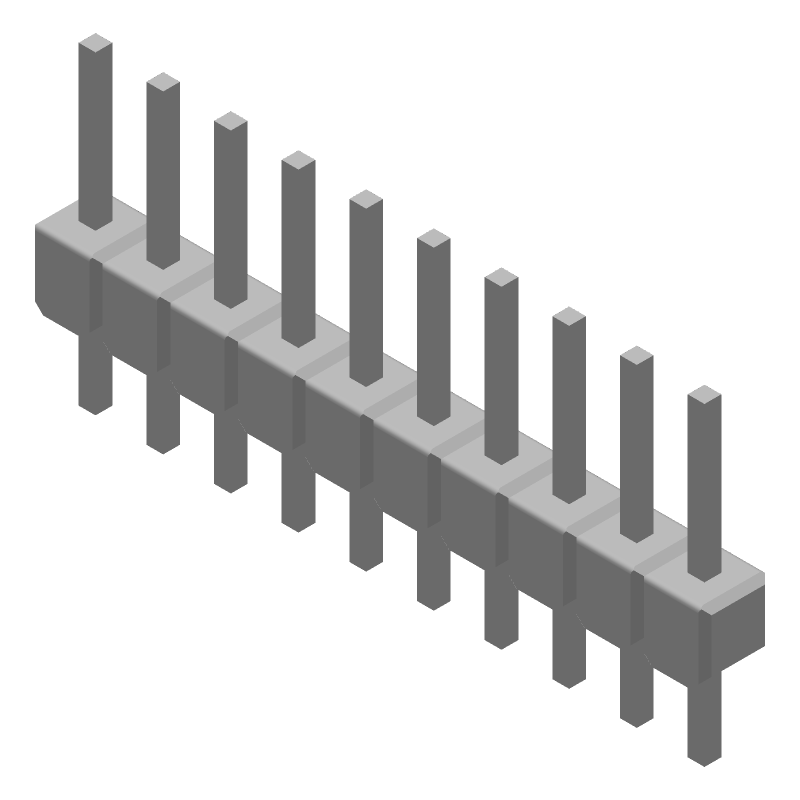

Unshrouded Header, 10 Positions, 1 Row, 2.54mm Pitch. Male Pin contacts, Square shape, Bronze material with Gold and Tin plating. Rated for 3A current, operating temperature range of -65°C to 105°C. Straight orientation, Through Hole termination, Vertical PCB mounting. Green housing, Lead Free, RoHS Compliant, UL94 V-0 flammability.
Current Rating3A
MountingStraddle Mount
Quick Jump:
Technical Specifications
TE Connectivity 1-826646-0 technical specifications.
General
Board Standoff
No (Without)
Color
Green
Contact Gender
Male
Contact Material
Bronze
Contact Mating Length
5.8mm
Contact Plating
Gold, Tin
Contact Post Length
0.1259inch
Contact Protection
No (Without)
Contact Shape
Square
Contact Type
Male Pin
Current Rating
3A
ELV
Compliant
Flammability Rating
UL94 V-0
Gasket
No (Without)
High Speed Serial Data Connector
No
High Temperature Housing
No
Housing Color
Green
Keyed
No
Lead Free
Lead Free
Mating Alignment
No (Without)
Mating Connector Lock
No (Without)
Max Operating Temperature
105°C
Min Operating Temperature
-65°C
Mount
Straddle Mount
Number of Contacts
10
Number of Positions
10
Number of Rows
1
Orientation
Straight
Package Quantity
500
Packaging
Carton
PCB Mount Retention
Without
PCB Mounting Orientation
Vertical
Pitch
2.54mm
Plating Thickness
0.8um
Radiation Hardening
No
RoHS Compliant
Yes
Row Spacing
2.54mm
Selectively Loaded
No (Without)
Series
AMPMODU MOD II
Stabilizers
No (Without)
Strain Relief
No (Without)
Termination
Through Hole
Compliance
RoHS
Compliant
