1-826936-6

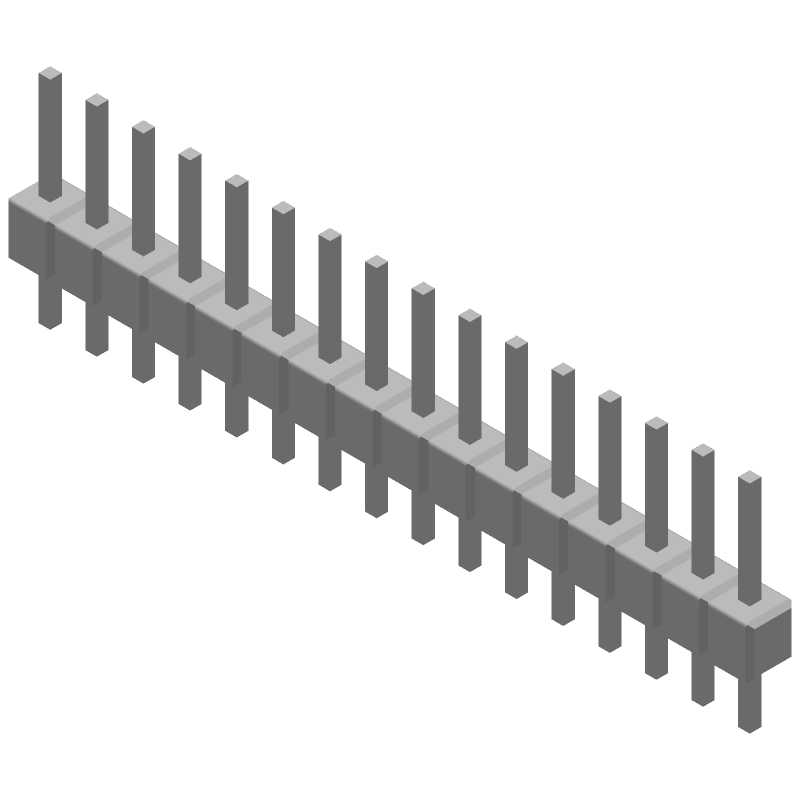

16 Pos 2.54mm Straight Thru-Hole Header, 3A, Green

Unshrouded Header, 16 Positions, Straight Orientation, Through Hole Mount. Features male pin contacts made of bronze with tin plating and a 2um plating thickness. Offers a 2.54mm pitch and row spacing, with a 3A current rating and 5A contact current rating. Constructed with PBT insulation in green, rated UL94 V-0, and operates within a -65°C to 105°C temperature range.

Current Rating3A

MountingThrough Hole

Quick Jump:

Technical Specifications

TE Connectivity 1-826936-6 technical specifications.

General

Board Standoff	No (Without)
Color	Green
Contact Current Rating	5A
Contact Finish - Mating	TIN
Contact Gender	Male
Contact Material	Bronze
Contact Mating Length	5.8mm
Contact Plating	Tin
Contact Post Length	0.1259inch
Contact Protection	No (Without)
Contact Shape	Square
Contact Style	Pin
Contact Type	Male Pin
Current Rating	3A
ELV	Compliant
Flammability Rating	UL94 V-0
Gasket	No (Without)
High Speed Serial Data Connector	No
High Temperature Housing	No
Housing Color	Green
Insulation Color	Green
Insulation Material	PBT
Keyed	No
Lead Length	3.19786mm
Mating Alignment	No (Without)
Mating Connector Lock	No (Without)
Max Operating Temperature	105°C
Min Operating Temperature	-65°C
Mount	Through Hole
Number of Contacts	16
Number of Positions	16
Number of Rows	1
Orientation	Straight
Package Quantity	500
Packaging	Bulk
PCB Mount Retention	Without
PCB Mounting Orientation	Vertical
Pitch	2.54mm
Plating Thickness	2um
Radiation Hardening	No
RoHS Compliant	Yes
Row Spacing	2.54mm
Selectively Loaded	No (Without)
Series	AMPMODU MOD II
Stabilizers	No (Without)
Strain Relief	No (Without)
Termination	Through Hole
