1-87631-4

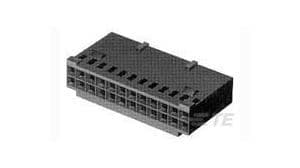

18 Pos 2 Row Female Header, 2.54mm Pitch, 3A, 250V, UL94 V-0

18-position, 2-row female header receptacle with a 2.54mm pitch and 0.100-inch row spacing. Features a straight orientation, black housing, and copper contacts rated for 3A and 250V AC. Designed for free hanging, cable mount applications with crimp termination, supporting wire gauges from 20AWG to 30AWG. Includes mating alignment, connector lock, and retention features, operating within a -65°C to 105°C temperature range. Compliant with RoHS and ELV standards, boasting a UL94 V-0 flammability rating.

Voltage Rating250V

Current Rating3A

MountingFree Hanging, Cable

Quick Jump:

Technical Specifications

TE Connectivity 1-87631-4 technical specifications.

General

Approvals	CSA
Color	Black
Contact Current Rating	3A
Contact Gender	Female
Contact Material	Copper
Contact Type	Female Socket
Current Rating	3A
Depth	15.24mm
ELV	Compliant
Flammability Rating	UL94 V-0
Height	3.14mm
Housing Color	Black
Lead Free	Not Applicable
Length	0.9inch
Mating Alignment	Yes (With)
Mating Connector Lock	Yes (With)
Mating Retention	Yes (With)
Max Operating Temperature	105°C
Min Operating Temperature	-65°C
Max Voltage Rating (AC)	250V
Mount	Free Hanging, Cable
Number of Contacts	18
Number of Positions	18
Number of Rows	2
Orientation	Straight
Package Quantity	1
Packaging	Bulk
Pitch	2.54mm
RoHS Compliant	Yes
Row Spacing	0.1inch
Series	AMPMODU MOD IV
Strain Relief	No (Without)
Termination	Crimp
Voltage Rating	250V
Voltage Rating (AC)	250V
Wire Gauge (Max)	30AWG
Wire Gauge (Min)	20AWG
Wire/Cable Gauge	30AWG
