40-position, 2-row rectangular wire housing with 2.54mm pitch, designed for cable mounting. Features straight orientation, male or female contact type, and crimp termination. Rated for 3A current and 250V AC, operating between -65°C and 105°C. Housing is black, UL94 V-0 flammability rated, and includes mating alignment, connector lock, and strain relief. Compliant with RoHS and CSA approvals.
Current Rating3A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
TE Connectivity 1-87733-1 technical specifications.
General
| Approvals | CSA |
| Color | Black |
| Contact Current Rating | 3A |
| Contact Material | Bronze |
| Contact Type | Male or Female |
| Current Rating | 3A |
| Depth | 48.26mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Height | 6.1mm |
| Housing Color | Black |
| Lead Free | Not Applicable |
| Length | 50.8mm |
| Mating Alignment | Yes (With) |
| Mating Connector Lock | Yes (With) |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -65°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Free Hanging, Cable |
| Number of Contacts | 40 |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 50 |
| Packaging | Bag |
| Pitch | 2.54mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Row Spacing | 0.1inch |
| Series | AMPMODU MOD IV |
| Strain Relief | Yes (With) |
| Termination | Crimp |
| Voltage Rating (AC) | 250V |
| Wire Gauge (Max) | 32AWG |
| Wire Gauge (Min) | 20AWG |
| Wire/Cable Gauge | 32AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1-87733-1 Datasheet
Download the complete datasheet for TE Connectivity 1-87733-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

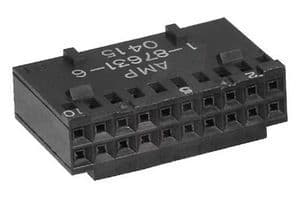

Product Images
