Automotive-grade wire housing connector, 10-position, straight orientation, 5.08mm pitch, designed for wire-to-wire applications. Features female socket contacts with crimp termination for 16AWG wire. Constructed with a black, UL94 V-0 flammability rated housing, this connector operates within a -67°C to 221°C temperature range and supports up to 600V. It is RoHS and ELV compliant, offering a halogen-free and lead-free solution.
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
TE Connectivity 1-917659-5 technical specifications.
General
Approvals
UL
Color
Black
Connector System
Wire-to-Wire
Contact Gender
Female
Contact Style
Socket
Contact Type
Female Socket
Depth
22.8mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Female
Halogen Free
Halogen Free
Height
0.897inch
Housing Color
Black
Lead Free
Lead Free
Length
37.46mm
Max Operating Temperature
221°C
Min Operating Temperature
-67°C
Max Voltage Rating (AC)
600V
Mount
Free Hanging, Cable
Number of Contacts
10
Number of Positions
10
Number of Rows
2
Operating Supply Voltage
600V
Orientation
Straight
Package Quantity
100
Packaging
Bag
Pitch
5.08mm
Preloaded
No
Primary Type
CONNECTOR
RoHS Compliant
Yes
Row Spacing
7.62mm
Sealable
No (Without)
Selectively Loaded
No (Without)
Series
Dynamic 3200
Termination
Crimp
VDE Tested
No
Width
14.77mm
Wire/Cable Gauge
16AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1-917659-5 Datasheet
Download the complete datasheet for TE Connectivity 1-917659-5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

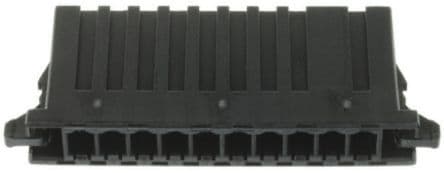

Product Images
