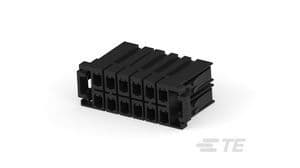

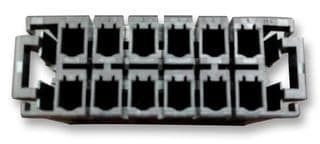

1-917659-6

12P 600V Wire-to-Wire Receptacle Connector, 2 Rows, 5.08mm Pitch

12-position, 2-row wire-to-wire receptacle power connector featuring a straight, free-hanging, cable mount orientation. This black housing, UL94 V-0 flammability rated component supports a maximum operating voltage of 600V and a current rating suitable for 16AWG wire. Designed with a 5.08mm pitch and 7.62mm row spacing, it operates within a temperature range of -67°C to 221°C. The connector system utilizes female socket contacts and crimp termination.

Voltage Rating600V

MountingFree Hanging, Cable

Quick Jump:

Technical Specifications

TE Connectivity 1-917659-6 technical specifications.

General

Approvals	UL
Color	Black
Connector System	Wire-to-Wire
Contact Style	Socket
Contact Type	Female Socket
Depth	22.8mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Receptacle
Halogen Free	Halogen Free
Height	0.897inch
Housing Color	Black
Lead Free	Lead Free
Length	1.674inch
Max Operating Temperature	221°C
Min Operating Temperature	-67°C
Max Voltage Rating (AC)	600V
Mount	Free Hanging, Cable
Number of Contacts	12
Number of Positions	12
Number of Rows	2
Operating Supply Voltage	600V
Orientation	Straight
Package Quantity	200
Packaging	Bag
Pitch	5.08mm
Preloaded	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Row Spacing	7.62mm
Sealable	No (Without)
Selectively Loaded	No (Without)
Series	Dynamic D-3200
Termination	Crimp
VDE Tested	No
Voltage Rating	600V
Width	14.77mm
Wire/Cable Gauge	16AWG
