16-position, 2-row male rectangular connector with a 5mm pitch and 3mm x 0.8mm tab size. Features tin-plated bronze/copper alloy contacts for signal applications, mounted via through-hole termination with solder. The black PBT housing offers right-angle orientation and PCB retention.
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 1-963215-1 technical specifications.
General
| Circuit Application | Signal |
| Color | Black |
| Contact Finish - Mating | TIN |
| Contact Material | Bronze, Copper Alloy |
| Contact Plating | Tin |
| Contact Shape | Rectangular |
| Contact Type | Tab |
| Depth | 34.6mm |
| ELV | Compliant |
| Gender | Male |
| Housing Color | Black |
| Insulation Color | Black |
| Insulation Material | PBT |
| Lead Free | Lead Free |
| Length | 34.6mm |
| Mount | Through Hole |
| Number of Contacts | 16 |
| Number of Ports | 1 |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Number of Signal Positions | 34 |
| Orientation | Right Angle |
| Package Quantity | 32 |
| Packaging | Bulk |
| PCB Mount Alignment | No (Without) |
| PCB Mount Retention | With |
| Pitch | 5mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Row Spacing | 0.236inch |
| Sealable | No (Without) |
| Series | Junior Power Timer |
| Shielding | Unshielded |
| Tab Thickness | 0.8mm |
| Tab Width | 3mm |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1-963215-1 Datasheet
Download the complete datasheet for TE Connectivity 1-963215-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

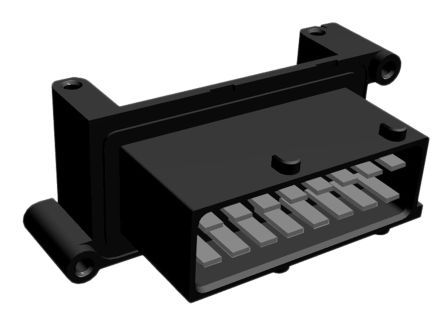

Product Images
