Shielded modular jack assembly for signal applications, featuring 8 positions and 8 loaded contacts. Constructed with bronze contacts plated in gold (2um), this straight, vertical PCB mount connector offers a 1.5A current rating and operates within a -40°C to 70°C temperature range. The black, UL94 HB rated housing is designed for solder termination with a 2.54mm pitch and 1.6mm PCB thickness compatibility.
Current Rating1.5A
Quick Jump:
Technical Specifications
TE Connectivity 100616-1 technical specifications.
General
Circuit Application
Signal
Contact Material
Bronze
Contact Plating
Gold
Current Rating
1.5A
Depth
13.4mm
Direction
User Selectable
Element Configuration
Single
ELV
Compliant
Flammability Rating
UL94 HB
Gender
Male
Housing Color
Black
Keyed
No
Lead Free
Lead Free
Length
18mm
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Number of Contacts
8
Number of Ports
1
Number of Positions
8
Number of Positions Loaded
8
Number of Rows
1
Orientation
Straight
Package Quantity
1080
Packaging
Bulk
PCB Mounting Orientation
Vertical
PCB Thickness
1.6mm
Pitch
2.54mm
Plating Thickness
2um
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Shielding
Shielded
Tail Length
0.122inch
Termination
Solder
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 100616-1 Datasheet
Download the complete datasheet for TE Connectivity 100616-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

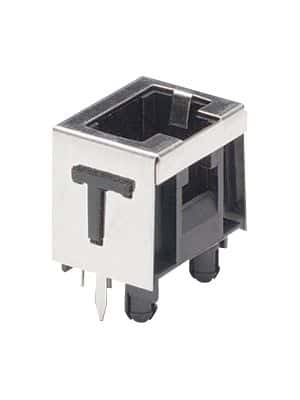

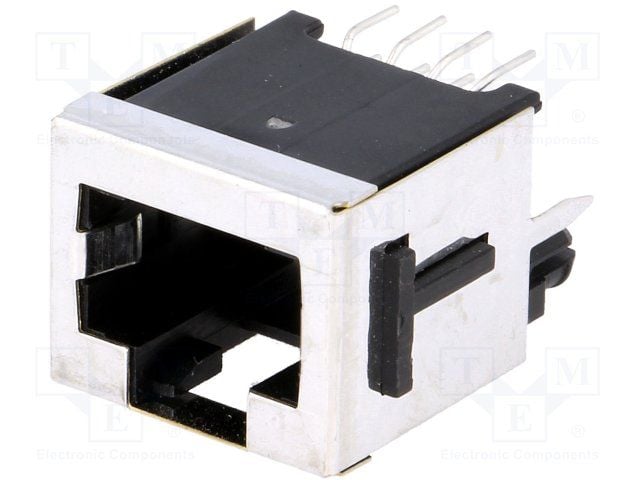

Product Images
