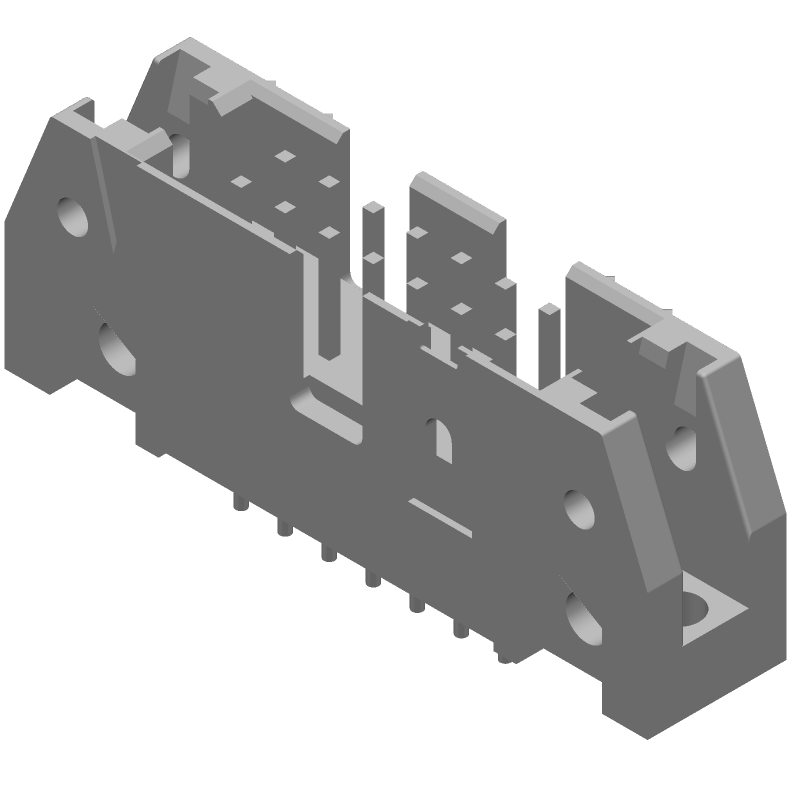

14-position, 2-row shrouded ejector header with 2.54mm pitch for board-to-board signal applications. Features straight, through-hole mounting with a 2.54mm contact post length and 1A current rating. Male pin contacts are made of bronze with gold or gold-palladium mating finish and gold, tin, lead plating. Housing and insulation are black, with a maximum operating temperature of 105°C and a 250V AC voltage rating. UL94 V-0 flammability rating and tray packaging.
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 102153-2 technical specifications.
General
Board Standoff
No (Without)
Circuit Application
Signal
Connector System
Board-to-Board
Contact Current Rating
1A
Contact Finish - Mating
Gold or Gold-Palladium
Contact Gender
Male
Contact Material
Bronze
Contact Plating
Gold, Tin, Lead
Contact Post Length
2.79mm
Contact Shape
Square
Contact Type
Male Pin
Current Rating
1A
Depth
8.53mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Male
Height
0.55inch
Housing Color
Black
Insulation Color
Black
Lead Free
Contains Lead
Lead Length
2.79mm
Length
37.08mm
Mating Alignment
Yes (With)
Mating Connector Lock
No (Without)
Mating Retention
No (Without)
Max Operating Temperature
105°C
Min Operating Temperature
-65°C
Max Voltage Rating (AC)
250V
Mount
Through Hole
Number of Contacts
14
Number of Positions
14
Number of Rows
2
Operating Supply Voltage
250V
Orientation
Straight
Package Quantity
80
Packaging
Tray
PCB Mount Alignment
No (Without)
PCB Mount Retention
Without
PCB Mounting Orientation
Vertical
PCB Thickness
1.57mm
Pitch
2.54mm
Radiation Hardening
No
RoHS Compliant
No
Row Spacing
2.54mm
Series
AMP-LATCH
Shrouded
Yes (With)
Shrouded End Dimension
3.81mm
Termination
Solder
Thickness
1.57mm
Compliance
RoHS
Not CompliantNo
