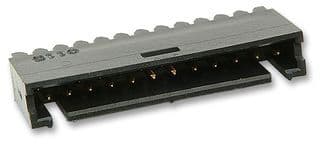

102202-7

10 Pos 2.54mm Straight Male Header, 3A, Gold/Tin Plating

10-position shrouded header with 2.54mm pitch, straight orientation, and male pin contacts. Features brass contacts with gold, tin, lead, matte plating, a 3A current rating, and a 6.1mm mating length. Designed for through-hole mounting with a vertical PCB orientation and a 1.397mm PCB thickness. Operating temperature range of -65°C to 105°C, with UL94 V-0 flammability rating and CSA approval.

Current Rating3A

MountingThrough Hole

Quick Jump:

Technical Specifications

TE Connectivity 102202-7 technical specifications.

General

Approvals	CSA
Board Standoff	Yes (With)
Color	Black
Contact Current Rating	3A
Contact Gender	Male
Contact Material	Brass
Contact Mating Length	6.1mm
Contact Plating	Gold, Tin, Lead, Matte
Contact Post Length	0.13inch
Contact Protection	Yes (With)
Contact Shape	Square
Contact Type	Male Pin
Current Rating	3A
Depth	5.82mm
ELV	Non-Compliant
Flammability Rating	UL94 V-0
Gasket	No (Without)
Gender	Male
High Speed Serial Data Connector	No
High Temperature Housing	No
Housing Color	Black
Keyed	No
Lead Free	Lead Free
Length	28.45mm
Mating Alignment	Yes (With)
Mating Connector Lock	No (Without)
Max Operating Temperature	105°C
Min Operating Temperature	-65°C
Mount	Through Hole
Number of Contacts	10
Number of Positions	10
Number of Rows	1
Orientation	Straight
Package Quantity	18
Packaging	Rail/Tube
Panel Mount Retention	No (Without)
PCB Mount Retention	Without
PCB Mounting Orientation	Vertical
PCB Thickness	1.397mm
Pitch	2.54mm
Radiation Hardening	No
Reach SVHC Compliant	Yes
RoHS Compliant	Yes
Row Spacing	2.54mm
Selectively Loaded	No (Without)
Series	AMPMODU MOD II
Shrouded End Dimension	1.778mm
Stabilizers	No (Without)
Strain Relief	No (Without)
Termination	Through Hole
