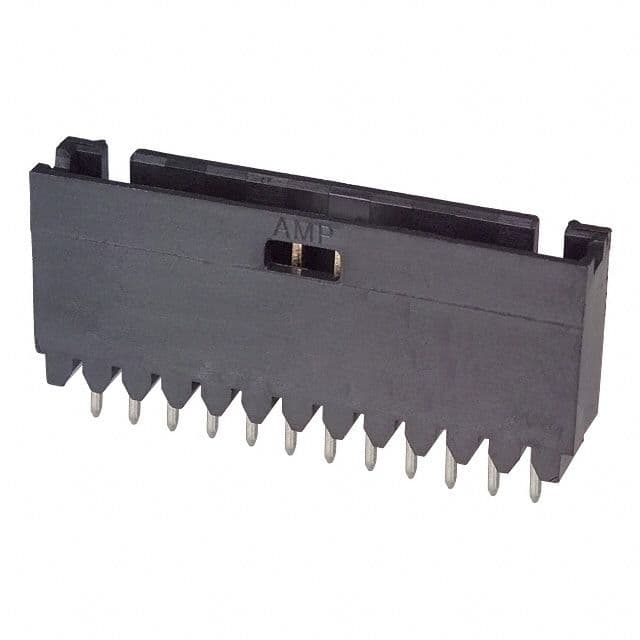

12-position shrouded header with a 2.54mm pitch, featuring male pin contacts made of brass with gold, tin, lead, and matte plating. This straight, through-hole mount connector offers a 3A current rating and operates within a temperature range of -65°C to 105°C. It includes mating alignment and contact protection, with a black housing rated UL94 V-0 for flammability. Designed for vertical PCB mounting, it is supplied in a tube package.
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 102202-9 technical specifications.
General
Approvals
CSA
Board Standoff
Yes (With)
Color
Black
Contact Current Rating
3A
Contact Gender
Male
Contact Material
Brass
Contact Mating Length
6.1mm
Contact Plating
Gold, Tin, Lead, Matte
Contact Post Length
0.13inch
Contact Protection
Yes (With)
Contact Shape
Square
Contact Type
Male Pin
Current Rating
3A
Depth
5.82mm
ELV
Non-Compliant
Flammability Rating
UL94 V-0
Gasket
No (Without)
Gender
Male
High Speed Serial Data Connector
No
High Temperature Housing
No
Housing Color
Black
Keyed
No
Lead Free
Contains Lead
Length
33.53mm
Mating Alignment
Yes (With)
Mating Connector Lock
No (Without)
Max Operating Temperature
105°C
Min Operating Temperature
-65°C
Mount
Through Hole
Number of Contacts
12
Number of Positions
12
Number of Rows
1
Orientation
Straight
Package Quantity
16
Packaging
Rail/Tube
Panel Mount Retention
No (Without)
PCB Mount Retention
Without
PCB Mounting Orientation
Vertical
PCB Thickness
1.397mm
Pitch
2.54mm
Radiation Hardening
No
RoHS Compliant
No
Row Spacing
2.54mm
Selectively Loaded
No (Without)
Series
AMPMODU MOD II
Shrouded End Dimension
1.778mm
Stabilizers
No (Without)
Strain Relief
No (Without)
Termination
Through Hole
Compliance
RoHS
Not CompliantNo
