10-position, 1-row female receptacle header with a 2.54mm pitch, designed for board-to-board and mezzanine applications. Features gold-plated copper contacts with a 3A current rating and 250V AC voltage rating. Straight orientation, free-hanging/cable/PCB mount, and crimp termination. Housing is black, UL94 V-0 flammability rated, and operates within a -65°C to 105°C temperature range. Compliant with RoHS and ELV standards.
Current Rating3A
MountingFree Hanging, Cable, PCB
Quick Jump:
Technical Specifications
TE Connectivity 102241-8 technical specifications.
General
Approvals
CSA
Color
Black
Contact Current Rating
3A
Contact Gender
Female
Contact Material
Copper
Contact Plating
Gold
Contact Type
Female Socket
Current Rating
3A
Depth
15.24mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Receptacle
Height
0.182inch
Housing Color
Black
Lead Free
Lead Free
Length
1inch
Mating Alignment
Yes (With)
Mating Connector Lock
Yes (With)
Max Operating Temperature
105°C
Min Operating Temperature
-65°C
Max Voltage Rating (AC)
250V
Mount
Free Hanging, Cable, PCB
Number of Contacts
10
Number of Positions
10
Number of Rows
1
Operating Supply Voltage
250V
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Pitch
2.54mm
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
AMPMODU MOD IV
Strain Relief
No (Without)
Termination
Crimp
Voltage Rating (AC)
250V
Width
4.62mm
Wire Gauge (Max)
32AWG
Wire Gauge (Min)
20AWG
Wire/Cable Gauge
32AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 102241-8 Datasheet
Download the complete datasheet for TE Connectivity 102241-8 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

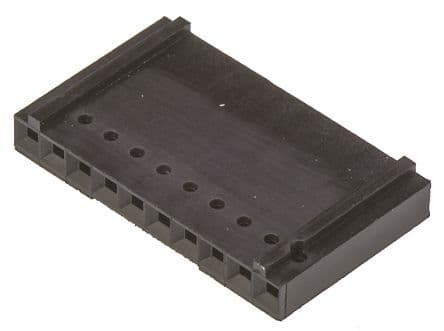

Product Images
