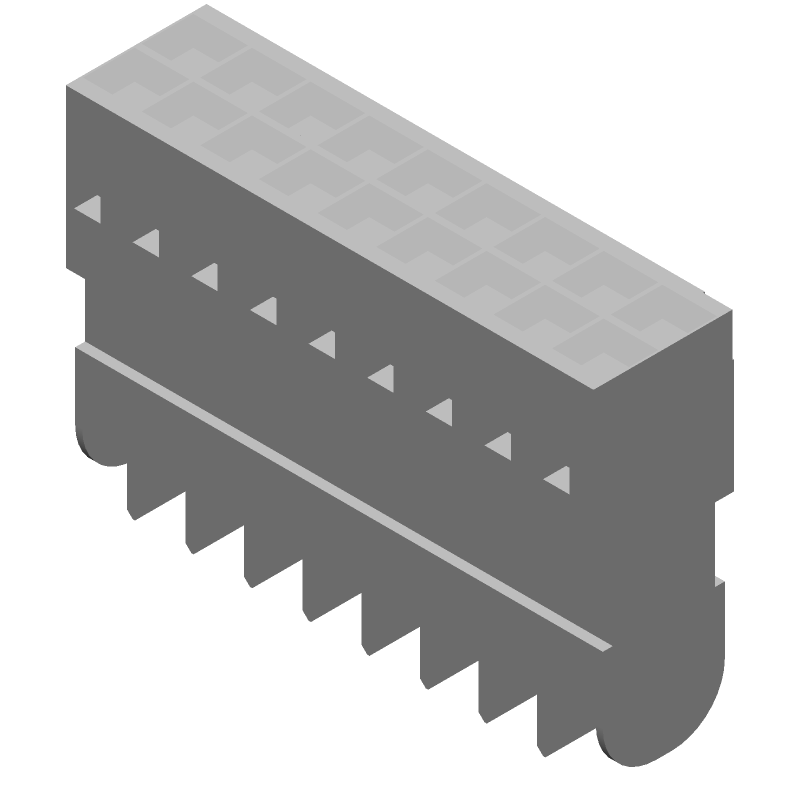

18-position, 2-row shrouded header with 2.54mm pitch and 0.1 inch row spacing. Features female socket contacts with a 3A current rating, IDC termination, and supports 30AWG wire/cable. Straight orientation, free hanging, cable mountable design in black housing. Operating temperature range of -65°C to 105°C, UL94 V-0 flammability rating, and CSA approval. RoHS compliant.
Current Rating3A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
TE Connectivity 102394-7 technical specifications.
General
Approvals
CSA
Color
Black
Contact Current Rating
3A
Contact Gender
Female
Contact Type
Female Socket
Current Rating
3A
ELV
Compliant
Flammability Rating
UL94 V-0
Height
6.1mm
Housing Color
Black
Lead Free
Not Applicable
Length
0.9inch
Mating Alignment
No (Without)
Mating Connector Lock
No (Without)
Max Operating Temperature
105°C
Min Operating Temperature
-65°C
Mount
Free Hanging, Cable
Number of Positions
18
Number of Rows
2
Orientation
Straight
Package Quantity
140
Packaging
Tray
Pitch
2.54mm
RoHS Compliant
Yes
Row Spacing
0.1inch
Series
AMPMODU MT
Termination
IDC
Wire/Cable Gauge
30AWG
Compliance
RoHS
Compliant
