103164-6

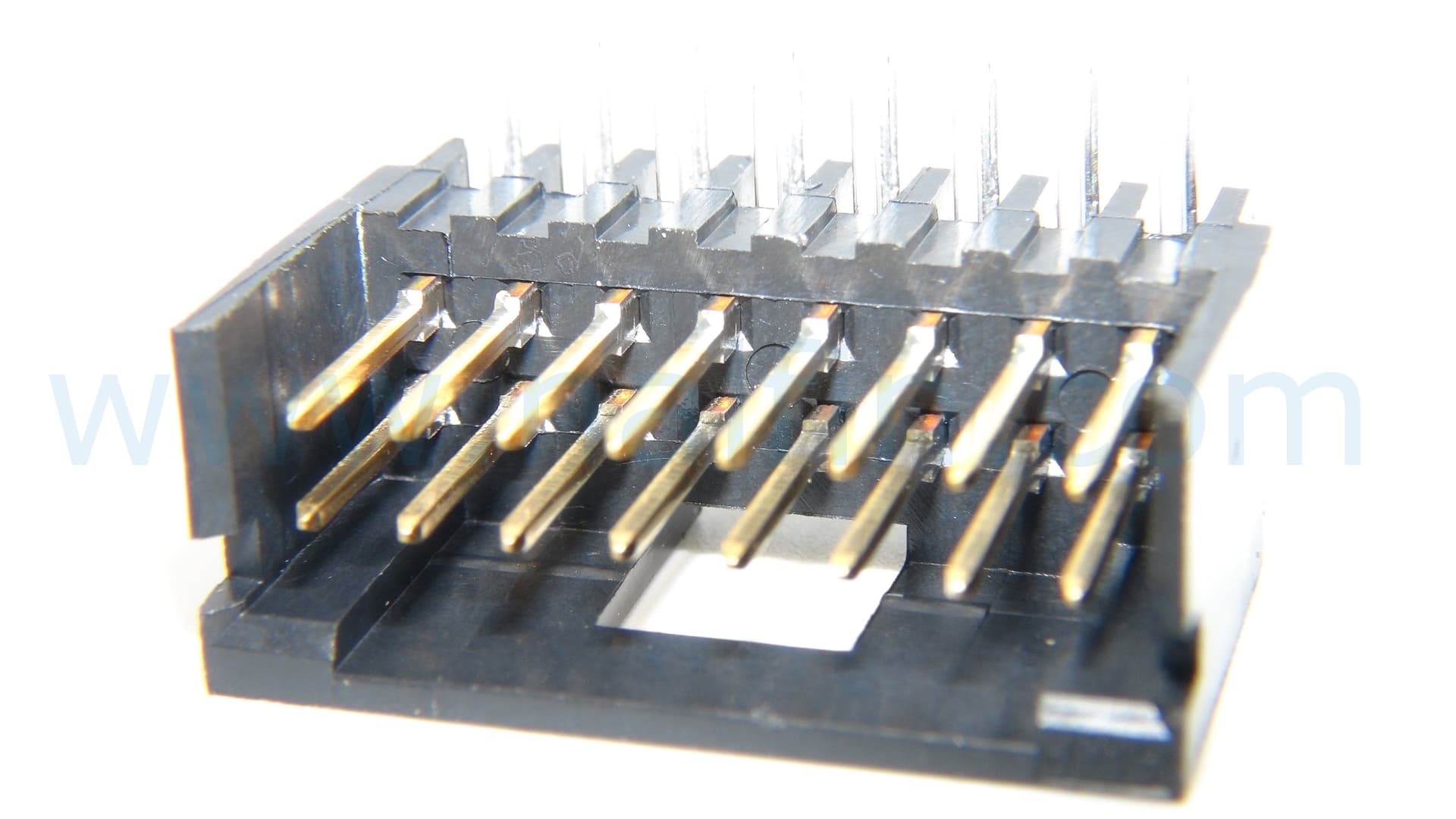

16 Pos 2.54mm RA Shrouded Header, Male Pin, 3A, Gold/Tin/Lead

16-position, 2-row shrouded header with a 2.54mm pitch and right-angle, through-hole termination. Features male pin contacts made of bronze with gold, tin, and lead plating, rated for 3A current. Housing is black, UL94 V-0 flammability rated, and operates from -65°C to 105°C. Includes mating alignment and contact protection.

Current Rating3A

MountingThrough Hole

Quick Jump:

Technical Specifications

TE Connectivity 103164-6 technical specifications.

General

Approvals	CSA
Board Standoff	No (Without)
Color	Black
Contact Current Rating	3A
Contact Gender	Male
Contact Material	Bronze
Contact Mating Length	8.08mm
Contact Plating	Gold, Tin, Lead
Contact Post Length	0.125inch
Contact Protection	Yes (With)
Contact Shape	Square
Contact Type	Male Pin
Current Rating	3A
Depth	16.23mm
ELV	Non-Compliant
Flammability Rating	UL94 V-0
Gasket	No (Without)
Gender	Male
High Speed Serial Data Connector	No
High Temperature Housing	No
Housing Color	Black
Keyed	No
Lead Free	Contains Lead
Length	23.16mm
Mating Alignment	Yes (With)
Mating Connector Lock	No (Without)
Max Operating Temperature	105°C
Min Operating Temperature	-65°C
Mount	Through Hole
Number of Contacts	16
Number of Positions	16
Number of Rows	2
Orientation	Right Angle
Package Quantity	104
Packaging	Tray
Panel Mount Retention	No (Without)
PCB Mount Retention	Without
PCB Mounting Orientation	Right Angle
PCB Thickness	1.397mm
Pitch	2.54mm
Radiation Hardening	No
RoHS Compliant	No
Row Spacing	2.54mm
Selectively Loaded	No (Without)
Series	AMPMODU MOD II
Shrouded End Dimension	1.68mm
Stabilizers	No (Without)
Strain Relief	No (Without)
Termination	Through Hole
