4-position, 1-row male header for board-to-board applications. Features straight, through-hole mounting with a 2.54mm pitch. Contact current rating of 3A, with gold-plated brass male pin contacts and gold, tin, lead, matte plating. Includes mating alignment and retention, with PCB mount retention. Thermoplastic body material, UL94 V-0 flammability rating, and a maximum operating temperature of 105°C.
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 103670-3 technical specifications.
General
Approvals
CSA
Backwall/Post Interruptions
No (Without)
Body Material
Thermoplastic
Contact Current Rating
3A
Contact Finish - Mating
GOLD
Contact Gender
Male
Contact Material
Brass
Contact Mating Length
0.23inch
Contact Plating
Gold, Tin, Lead, Matte
Contact Retention
Yes (With)
Contact Shape
Square
Contact Style
Pin
Contact Type
Male Pin
Current Rating
3A
Depth
6.98mm
Flammability Rating
UL94 V-0
Gender
Male
Height
13.59mm
Housing Color
Black
Insulation Color
Black
Insulation Material
Thermoplastic
Lead Free
Contains Lead
Length
12.7mm
Mating Alignment
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
105°C
Min Operating Temperature
-65°C
Mount
Through Hole
Number of Contacts
4
Number of Positions
4
Number of Rows
1
Orientation
Straight
Package Quantity
42
Packaging
Rail/Tube
PCB Mount Alignment
No (Without)
PCB Mount Retention
With
PCB Mounting Orientation
Vertical
PCB Thickness
0.08inch
Pitch
2.54mm
Plating
Gold
Plating Thickness
2.54um
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
No
Row Spacing
0.1inch
Series
AMPMODU MTE
Strain Relief
No (Without)
Tail Length
3.3mm
Termination
Crimp
Compliance
RoHS
Not CompliantNo
Datasheet
TE Connectivity 103670-3 Datasheet
Download the complete datasheet for TE Connectivity 103670-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

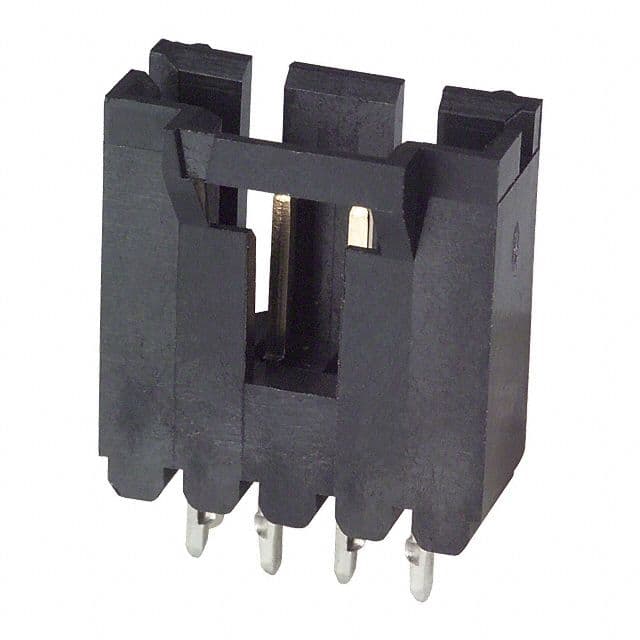

Product Images
