104346-1

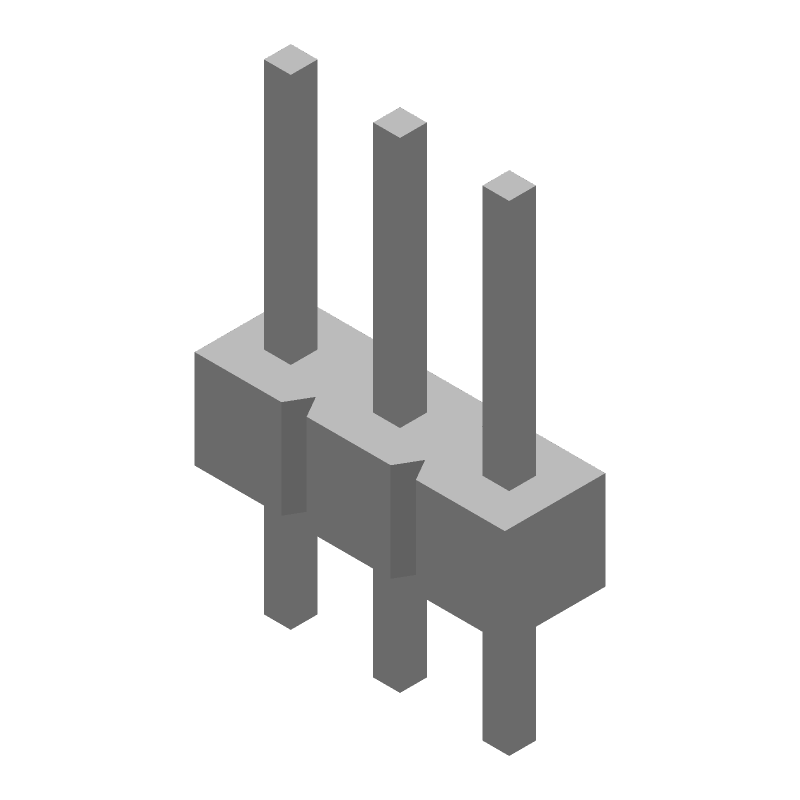

3 POS 2.54mm Straight Thru-Hole Male Header, 3A, Tin-Lead

Unshrouded Header, 3 positions, 1 row, 2.54mm pitch, straight orientation, male pin contact type, bronze contact material with tin-lead plating, 3A contact current rating, 105°C max operating temperature, thermoplastic insulation, black housing color, through-hole mount, UL94 V-0 flammability rating. This connector features a 0.12-inch contact post length and 0.23-inch contact mating length, with PCB mount retention. It operates within a -65°C to 105°C temperature range and has a 30V AC voltage rating.

Current Rating3A

MountingThrough Hole

Quick Jump:

Technical Specifications

TE Connectivity 104346-1 technical specifications.

General

Approvals	CSA
Board Standoff	No (Without)
Color	Black
Contact Current Rating	3A
Contact Finish - Mating	Tin-Lead
Contact Gender	Male
Contact Material	Bronze
Contact Mating Length	0.23inch
Contact Plating	Tin, Lead
Contact Post Length	0.12inch
Contact Protection	No (Without)
Contact Shape	Square
Contact Type	Male Pin
Current Rating	3A
Depth	2.34mm
ELV	Non-Compliant
Flammability Rating	UL94 V-0
Gasket	No (Without)
Gender	Male
High Speed Serial Data Connector	No
High Temperature Housing	No
Housing Color	Black
Insulation Color	Black
Insulation Material	Thermoplastic
Keyed	No
Lead Free	Contains Lead
Length	7.21mm
Mating Alignment	No (Without)
Mating Connector Lock	No (Without)
Max Operating Temperature	105°C
Min Operating Temperature	-65°C
Mount	Through Hole
Number of Contacts	3
Number of Positions	3
Number of Rows	1
Orientation	Straight
Package Quantity	540
Packaging	Carton
PCB Mount Retention	With
PCB Mounting Orientation	Vertical
PCB Thickness	0.062inch
Pitch	2.54mm
Radiation Hardening	No
RoHS Compliant	No
Row Spacing	2.54mm
Selectively Loaded	No (Without)
Series	AMPMODU MOD II
Stabilizers	No (Without)
Strain Relief	No (Without)
Termination	Through Hole
Voltage Rating (AC)	30V
